Compressor/Pump Relay: Locations

AUTOMATIC LEVEL CONTROL RELAY

Behind The Rear Seat Cushion:

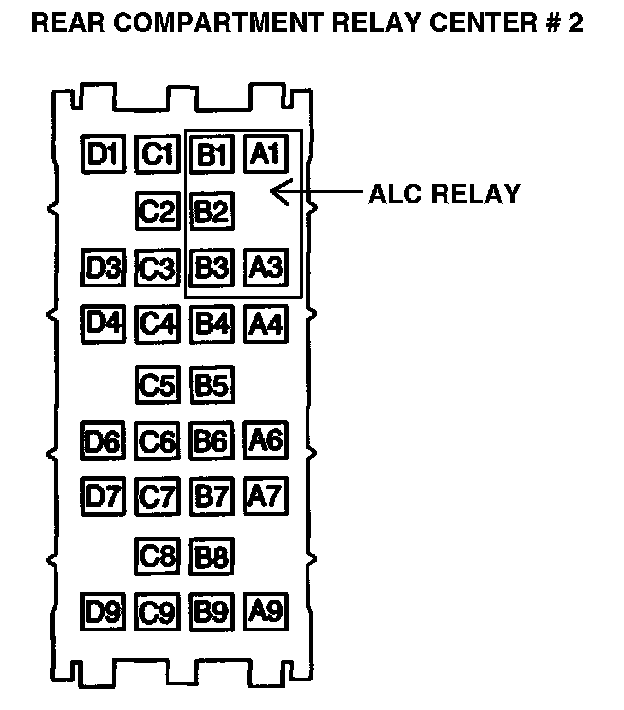

The Automatic Level Control Relay is located in the Rear Compartment Relay Center # 2. Rear Compartment Relay Center # 2 is located in the LH rear of passenger compartment, behind the rear seat on the electronics bay.
