Throttle Cable/Linkage: Description and Operation

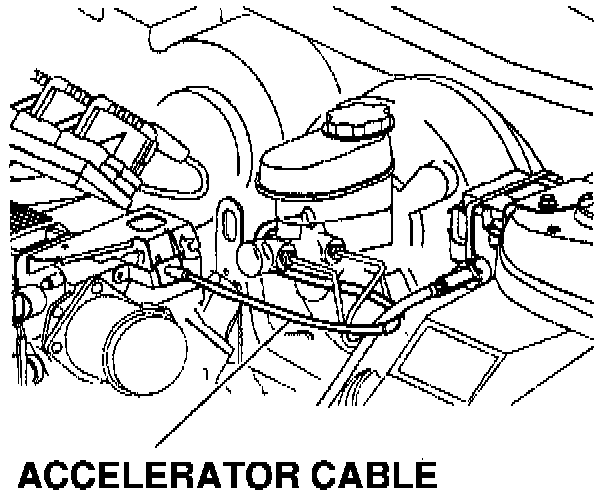

Accelerator Cable:

ACCELERATOR CONTROLS
The accelerator control system is cable operated. There are no linkage adjustments. Therefore, the specific cable for each application must be used. The accelerator cable is routed through the groove in the throttle body lever.

AFTER REPAIR CHECKS
When work has been performed on accelerator controls, always make sure that all components are installed correctly and that linkage and cables are not rubbing or binding in any manner. The throttle should operate freely without bind between full closed and wide open throttle.
