Home
>>
Cadillac
>>
1998
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
Trunk Compartment Fuse Block Fuses
>>

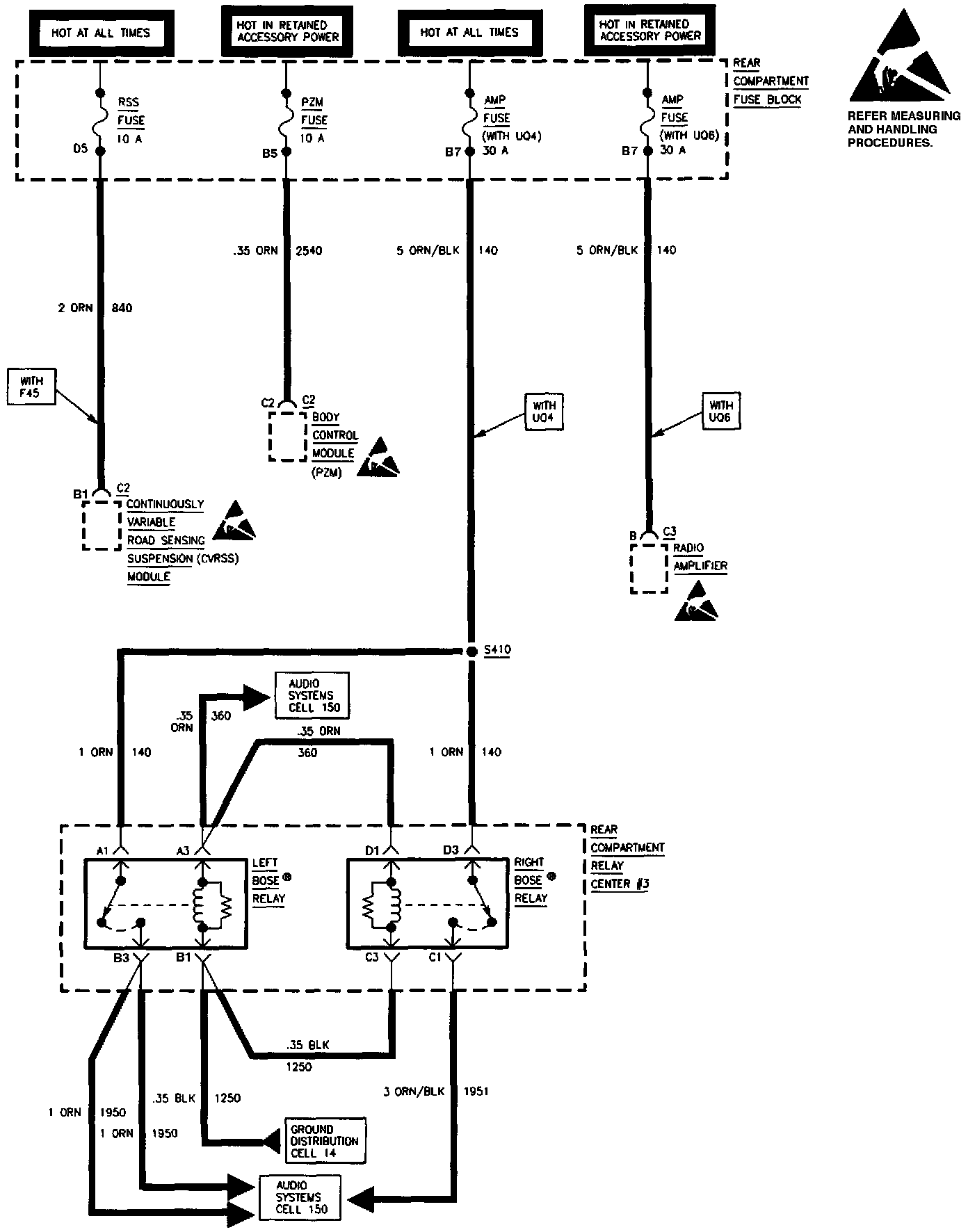

RSS Fuse (10 AMP), PZM Fuse (10 AMP) And AMP Fuse (30 AMP)
RSS Fuse (10 AMP), PZM Fuse (10 AMP) And AMP Fuse (30 AMP)
RSS Fuse (10 AMP), PZM Fuse (10 AMP) And AMP Fuse (30 AMP):
