Reflector Replacement - Front

REMOVAL PROCEDURE

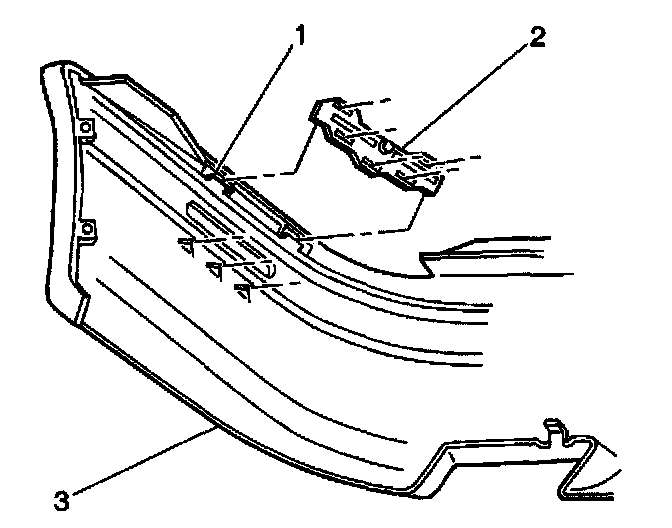

1. Remove the rear bumper fascia (2).
2. Remove the screws retaining the reflectors.
3. Remove the reflectors.

INSTALLATION PROCEDURE
1. Position the reflectors.
2. Install the screws.
3. Install the rear bumper fascia (2).
