Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Diagrams >> Electrical Diagrams >> With Four Note Horn (U09)

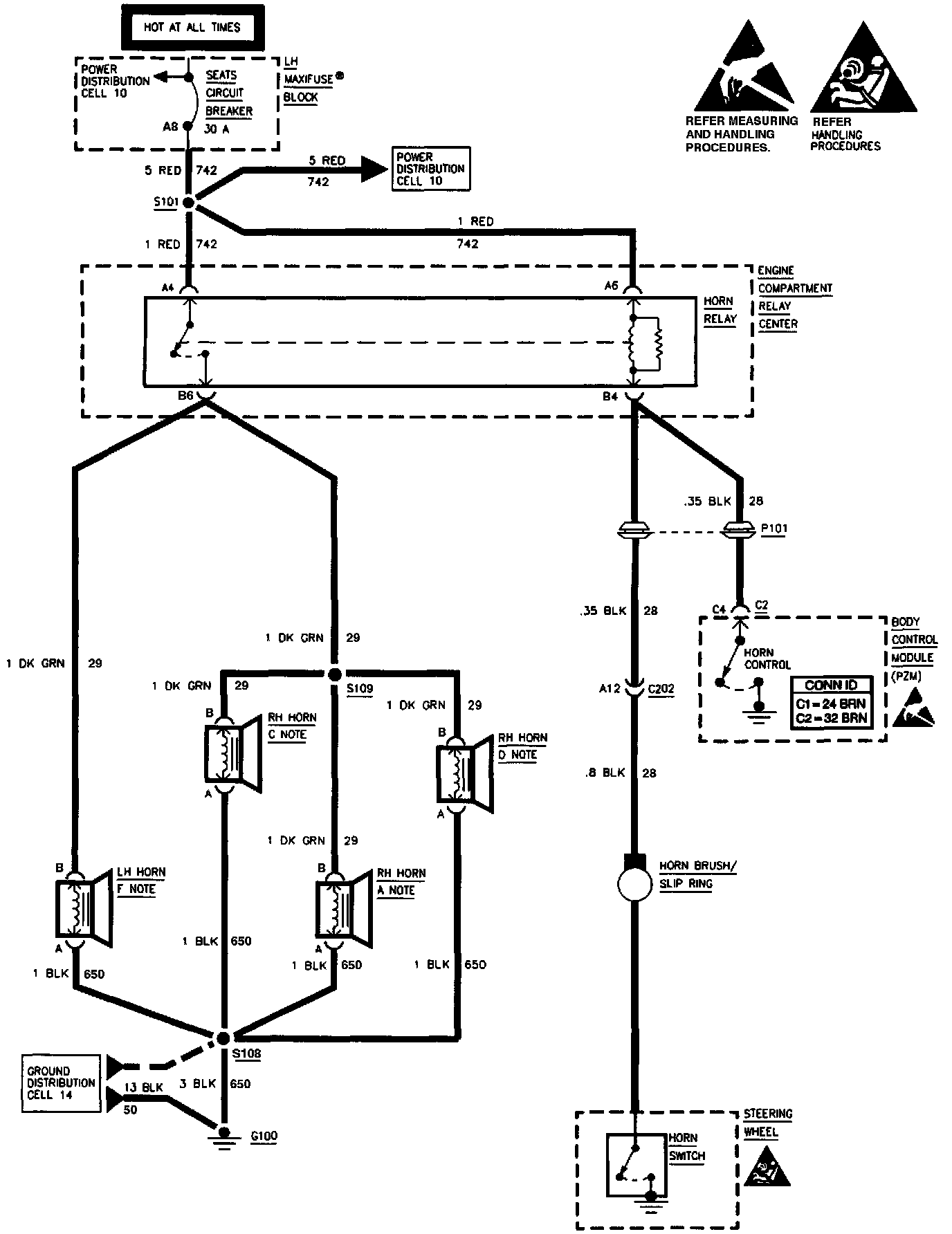

With Four Note Horn (U09)

Horns: With Four Note Horn (U09):
