Intake Manifold Installation (1)
INTAKE MANIFOLD ASSEMBLY PROCEDUREIMPORTANT: The following steps are only necessary if the throttle body or intake manifold required replacement.

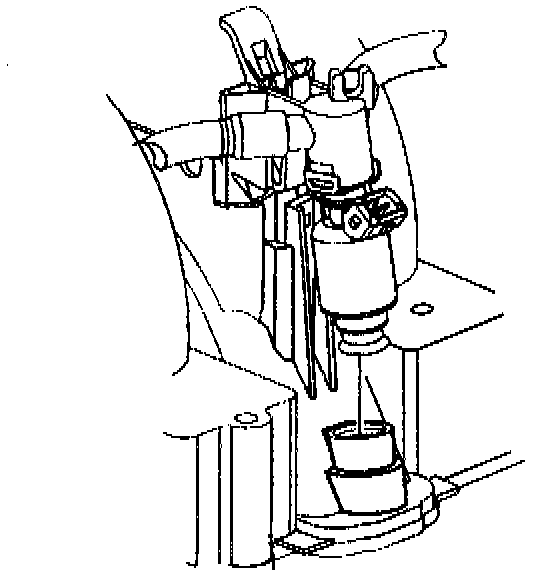

1. Align the snap lock retainers and fuel injectors in position on the intake manifold.

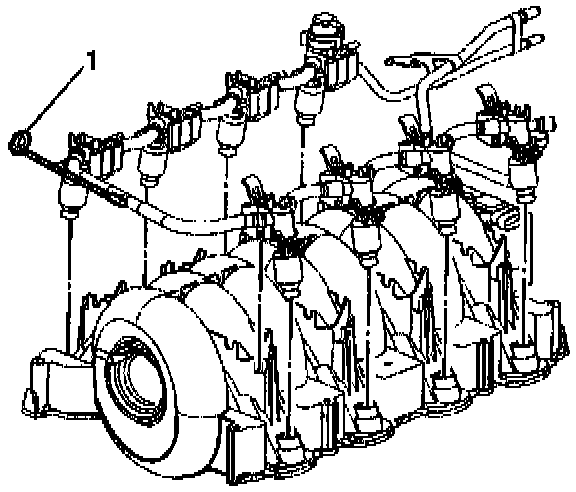

2. Snap the entire fuel rail and injector assembly into the intake manifold by pressing the fuel rail and injector simultaneously into correct position. DO NOT force the injector into position or damage to the O-ring seals could occur. Keep the fuel rail ground wire (1) clear of the injectors.
3. Connect the fuel regulator vacuum tube.

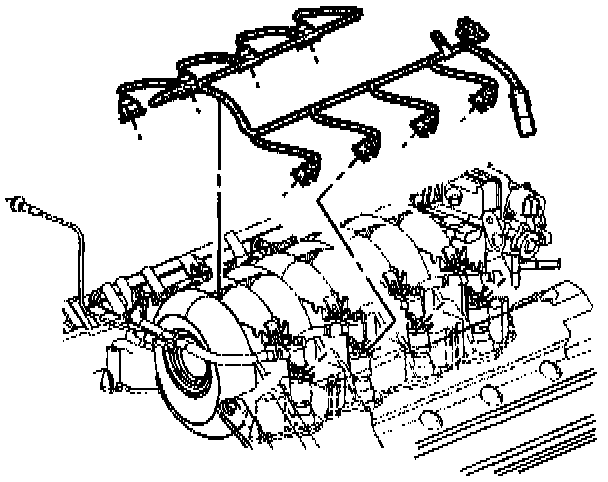

4. Place the fuel injector wire harness in position and connect each connector to its respective fuel injector.
5. Install the power brake booster vacuum hose.

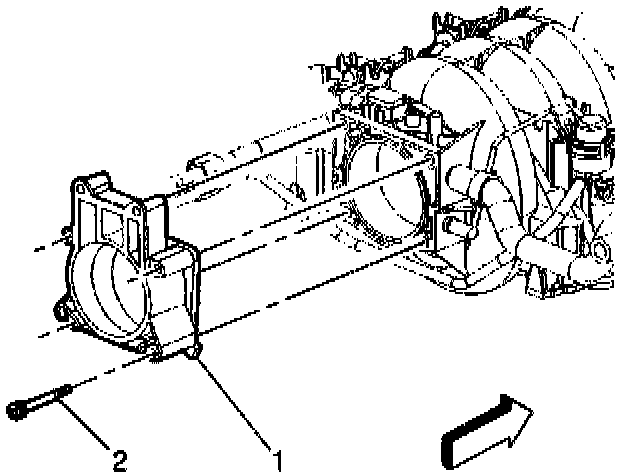

6. Install the throttle body spacer retaining bolts (2) and throttle body spacer (1) to the intake manifold.
IMPORTANT: Make sure all mating surfaces for the throttle body spacer and throttle body are clean. Any debris or flawed sealing surfaces could cause vacuum leaks and hinder engine performance.
Tighten the throttle body spacer bolts to 12 Nm (106 inch lbs.).
NOTICE: Refer to Fastener Notice in Service Precautions.

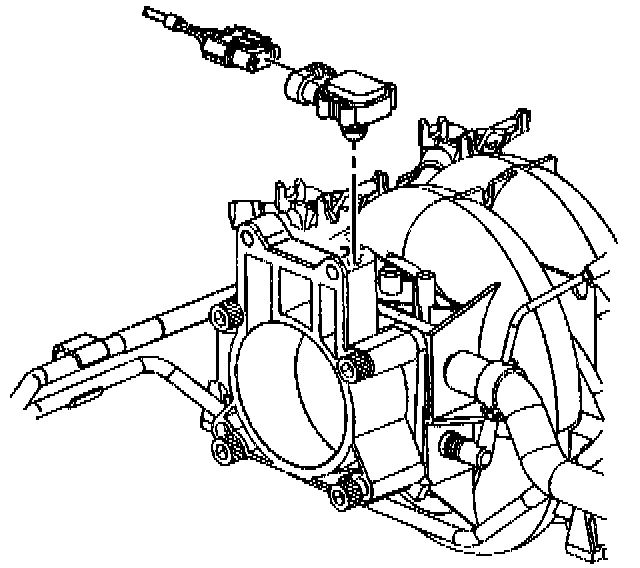

7. Press the MAP sensor in position at the top of the spacer mounting location.

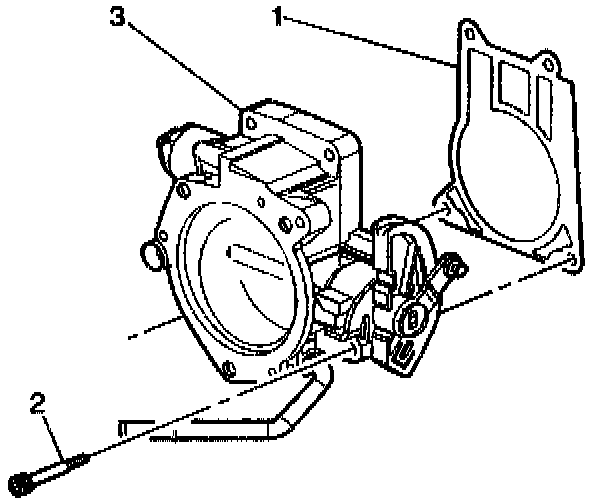

8. Install a new throttle body gasket (1) on the throttle body (3). Make sure all the old gasket material is removed.

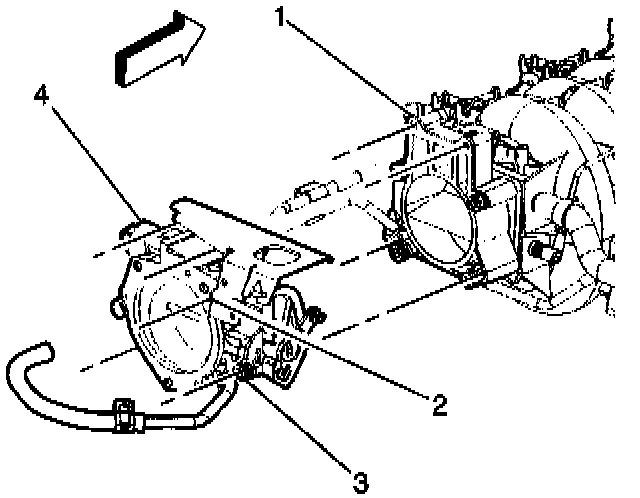

9. Place the throttle body (4) in position on the throttle body spacer (1).
10. Install the upper (2) and lower (3) throttle body retaining bolts. Tighten the upper throttle body retaining bolts to 12 Nm (106 inch lbs.). Tighten the lower throttle body retaining bolts to 10 Nm (89 inch lbs.).
INTAKE MANIFOLD INSTALLATION

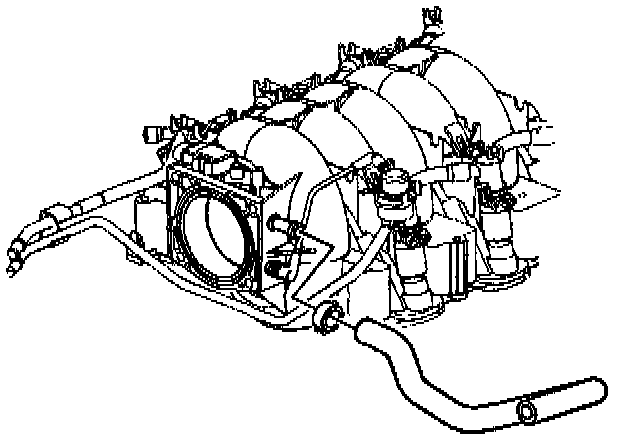

1. Clean any debris from the cylinder head or intake manifold gaskets. Place the intake manifold in position on the cylinder heads.
IMPORTANT: The intake manifold carrier gaskets are attached to the intake manifold through a snap-lock feature. When you install the intake manifold, the carrier gaskets will remain attached to the manifold. It is not necessary to replace the gaskets unless there is damage to the seals.

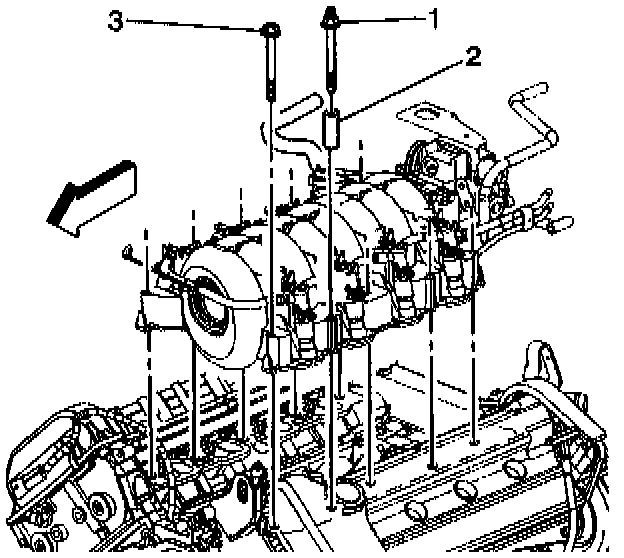

2. Install the four studs (1) and spacers (2) and six bolts (3).
Tighten the intake manifold bolts and studs starting from the center and working outward in a circular pattern to 10 Nm (89 inch lbs.).
NOTICE: Refer to Fastener Notice in Service Precautions.

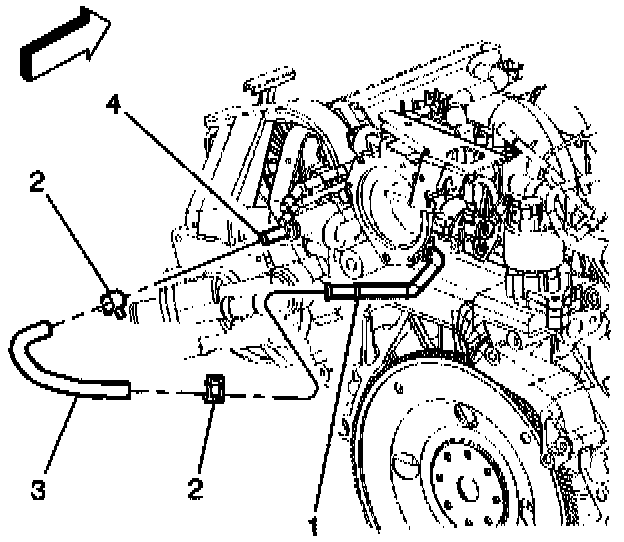

3. Connect the throttle body coolant hose (3) to the water crossover (4).

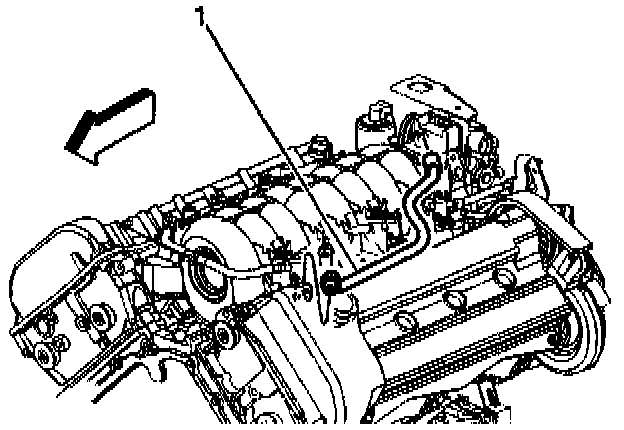

4. Connect the fuel rail ground wire at the rear cylinder head. Tighten the fuel rail ground wire retaining bolt to 11 Nm (97 inch lbs.).

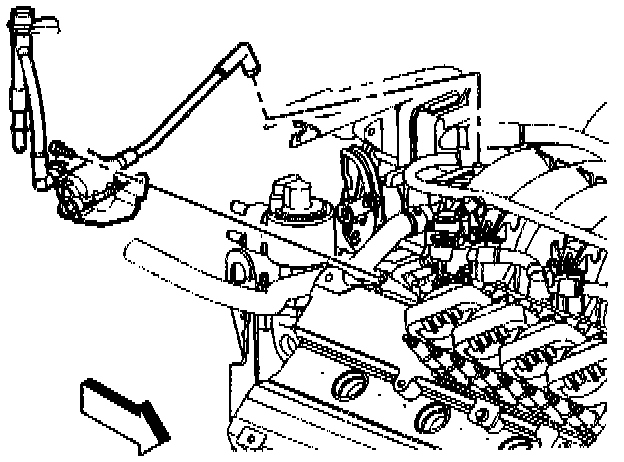

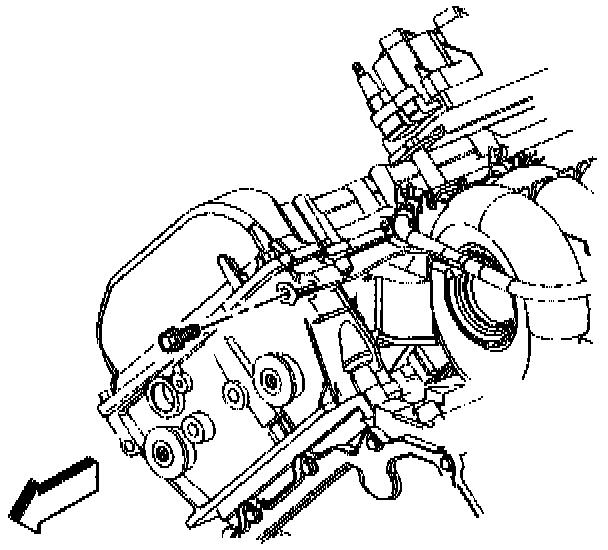

5. Install the fuel rail bracket retaining nut onto the inner EGR valve mounting stud. Tighten the fuel rail bracket retaining nut to 18 Nm (13 ft. lbs.).

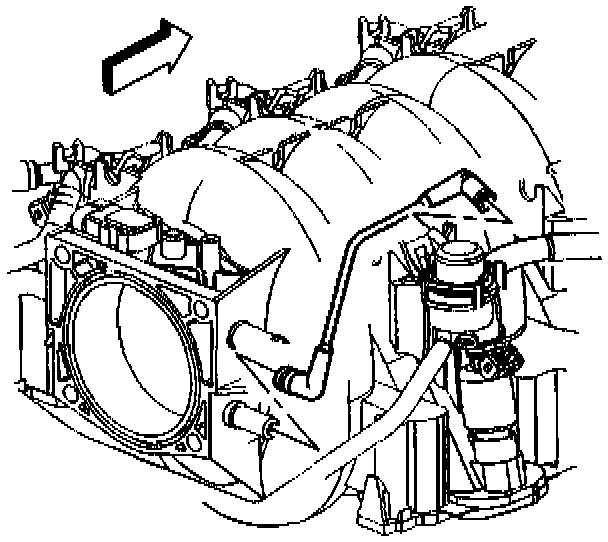

6. Install the purge solenoid harness and retaining bolt. Connect the hose to the intake manifold. Tighten the purge solenoid harness retaining bolt to 12 Nm (106 inch lbs.).

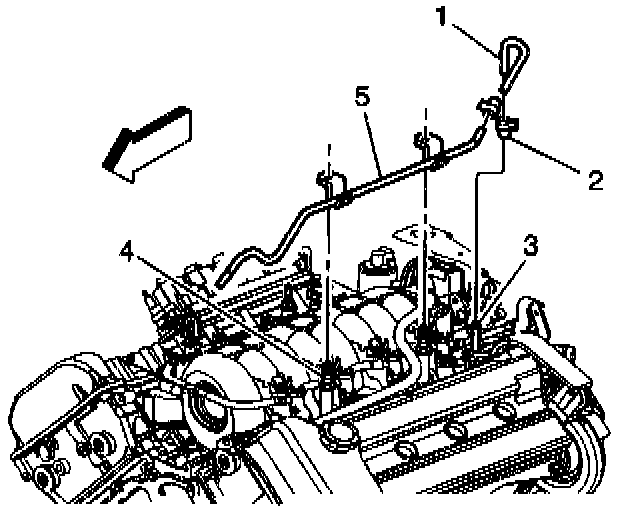

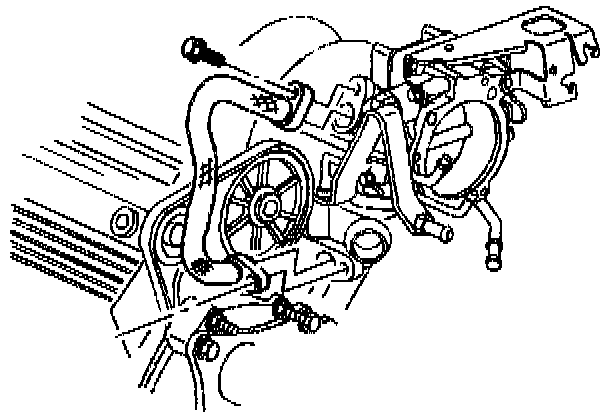

7. Connect the throttle body coolant outlet hose (1) to the throttle body (2) and place the coolant overflow pipe (5) retaining tabs on the intake manifold studs (4).

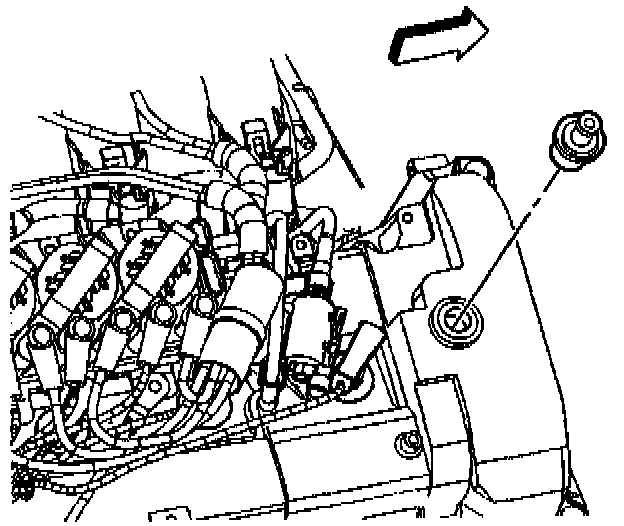

8. Install a new PCV valve in the camshaft cover.
9. Connect the PCV fresh air feed tube (1) to the camshaft cover and the intake manifold.
10. Connect the dirty air PCV feed tube (1) to the PCV valve (2) and camshaft cover.
11. Connect the EGR and crankcase ventilation pipe at the throttle body spacer.
