Coolant Heater Replacement (Rear)

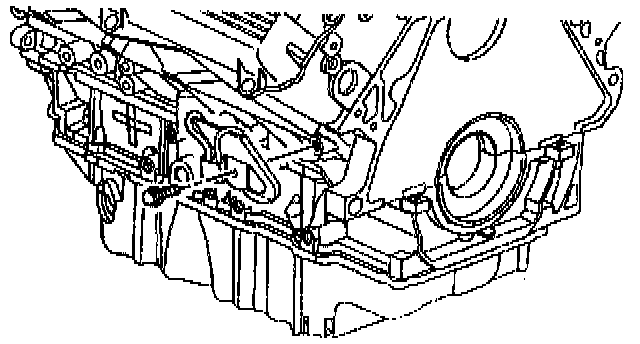

REMOVAL PROCEDURE





1. Raise the vehicle.
2. Disconnect the electrical connector at the engine block heater.
3. Remove the coolant heater retaining bolt.
4. Remove the coolant heater.

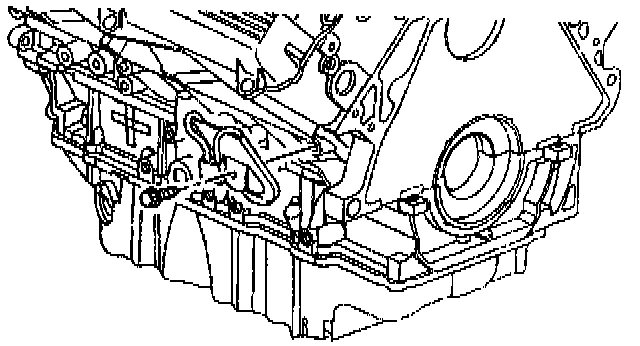

INSTALLATION PROCEDURE





1. Install the coolant heater.
2. Install the coolant heater retaining bolt.
Tighten the coolant heater bolt to 9 Nm (80 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Connect the electrical connector to the coolant heater.
4. Lower the vehicle.
