Relays
Relays

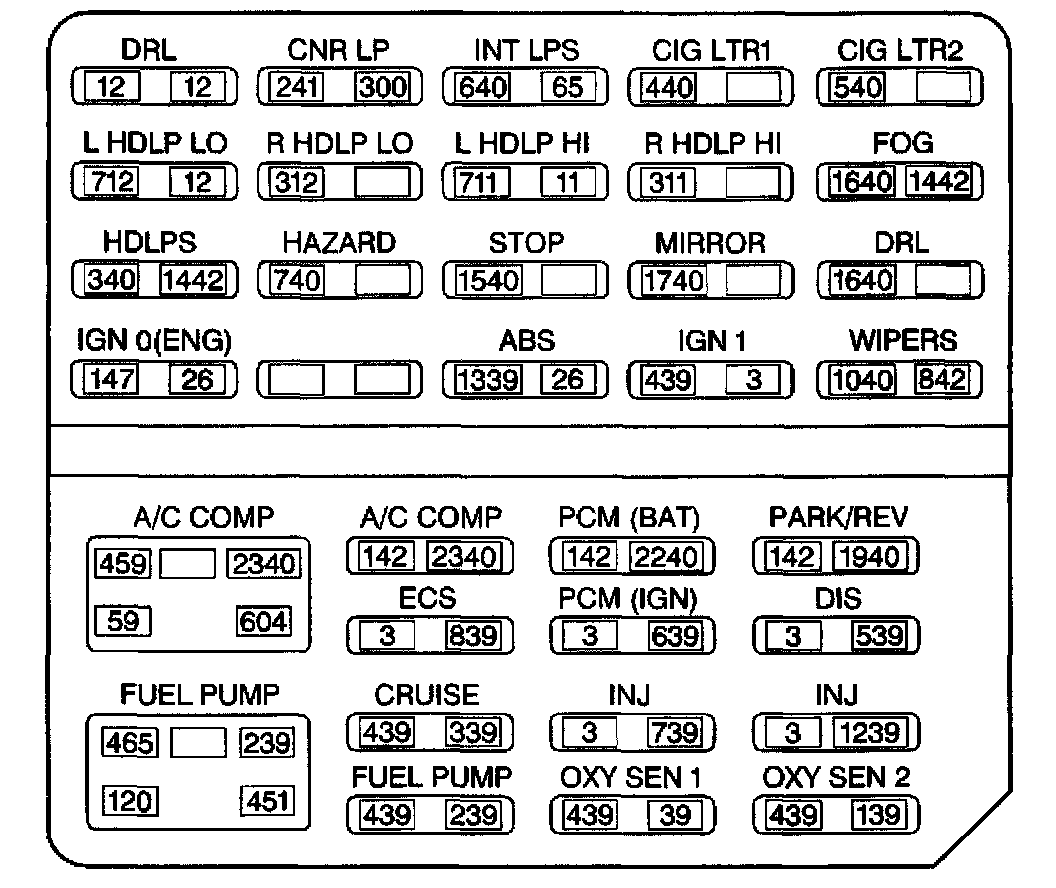

Engine Compartment Fuse/Relay Center:

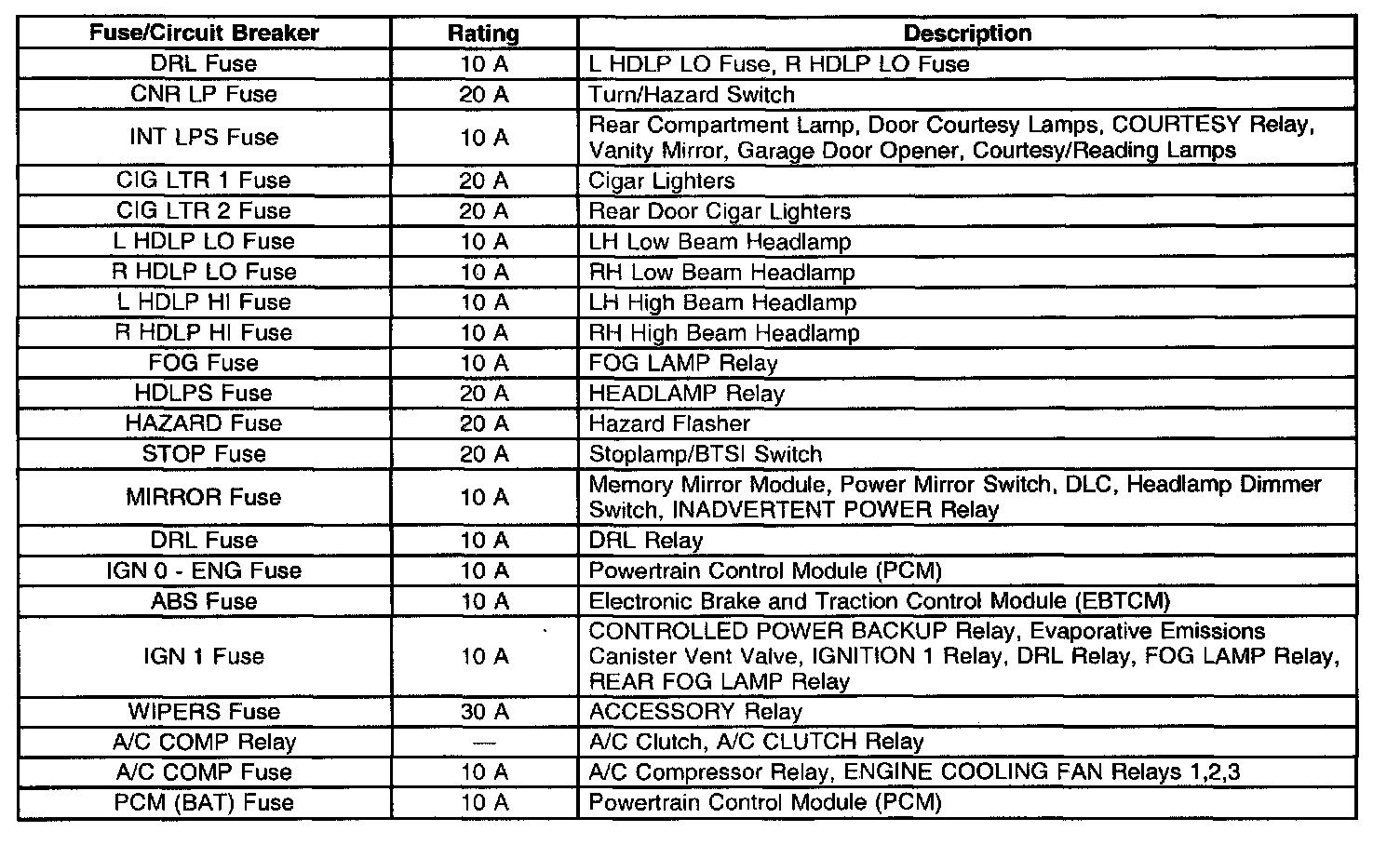

Engine Compartment Fuse/Relay Center Details (1 Of 2):

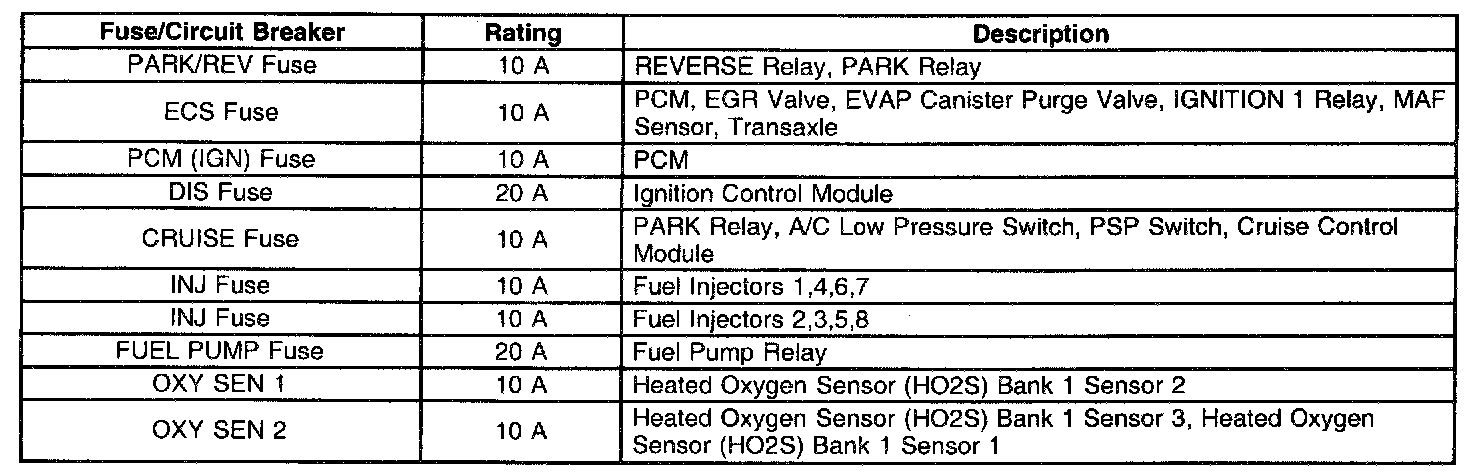

Engine Compartment Fuse/Relay Center Details (2 Of 2):
