Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> Trunk Compartment Fuse Block Fuses >> Comfort Fuse (10 Amps)

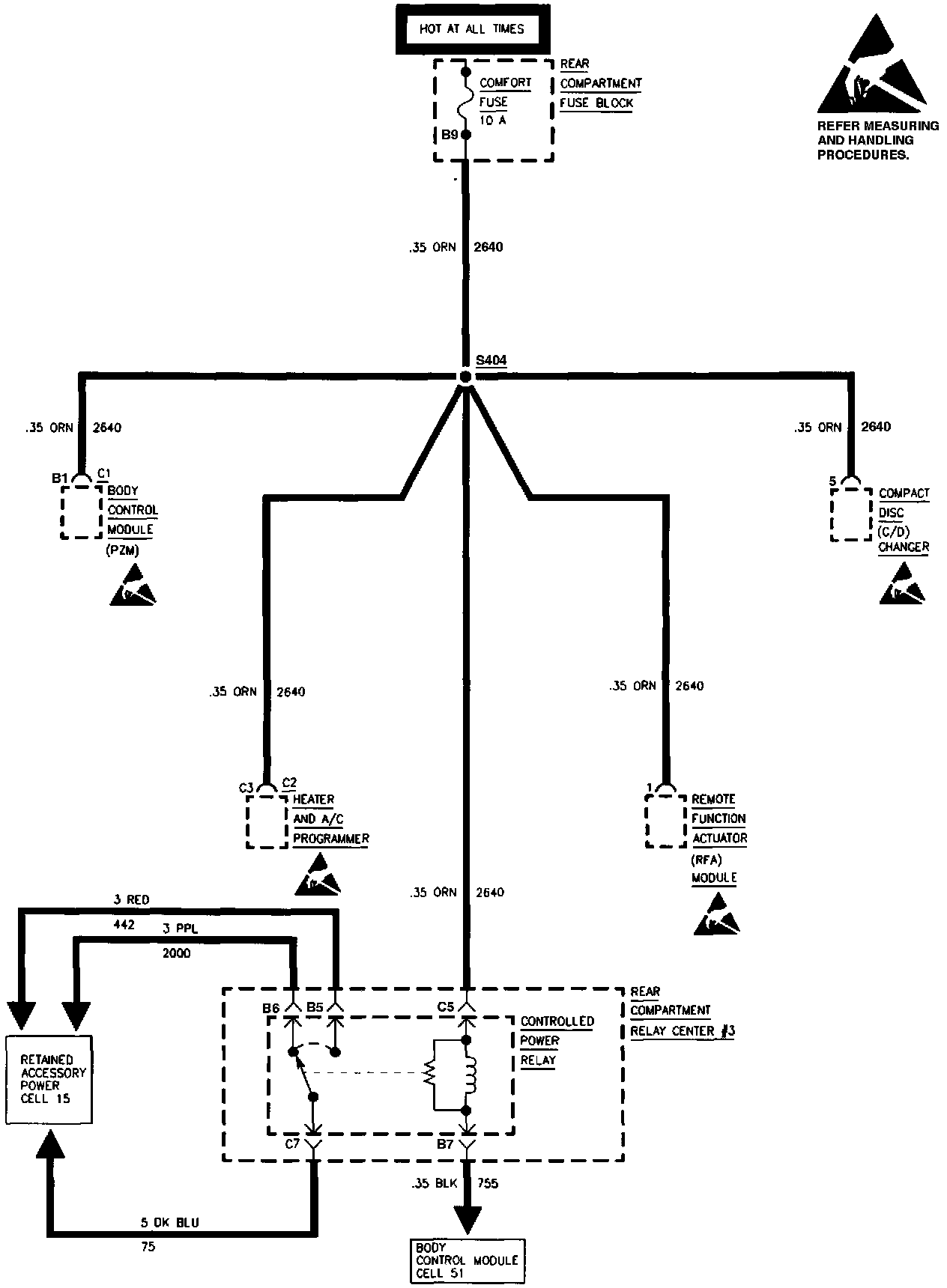

Comfort Fuse (10 Amps)

Comfort Fuse (10 AMP):
