Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> LH Maxi Fuse Block Fuses >> Lamps Fuse (60 Amp)

Lamps Fuse (60 Amp)

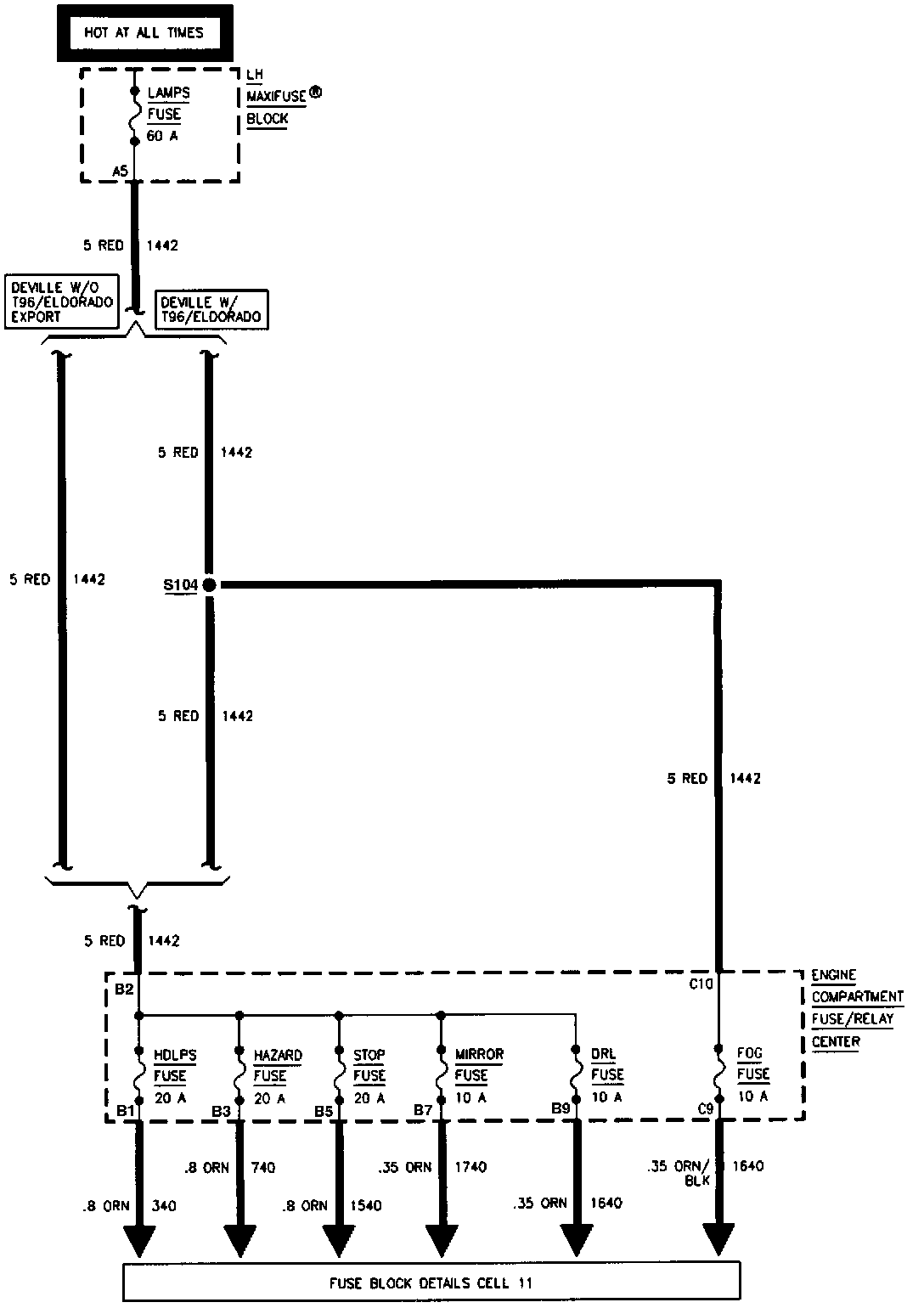

Power Distribution: Lamps Fuse (60 AMP):
