Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> LH Maxi Fuse Block Fuses >> Body 3 Fuse (50 Amp)

Body 3 Fuse (50 Amp)

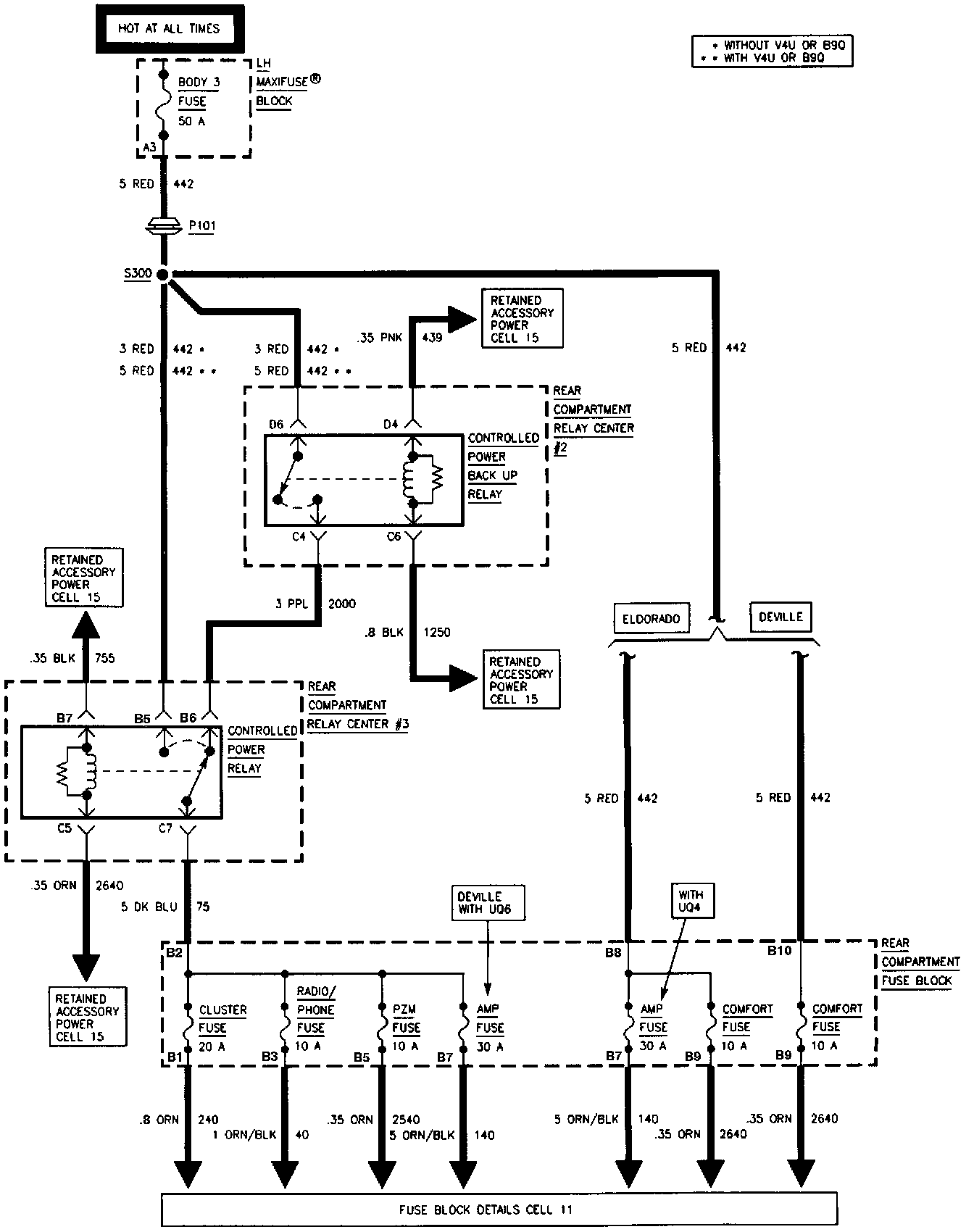

Power Distribution: Body 3 Fuse (50 AMP):
