Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Wiring >> With Active Audio System

With Active Audio System

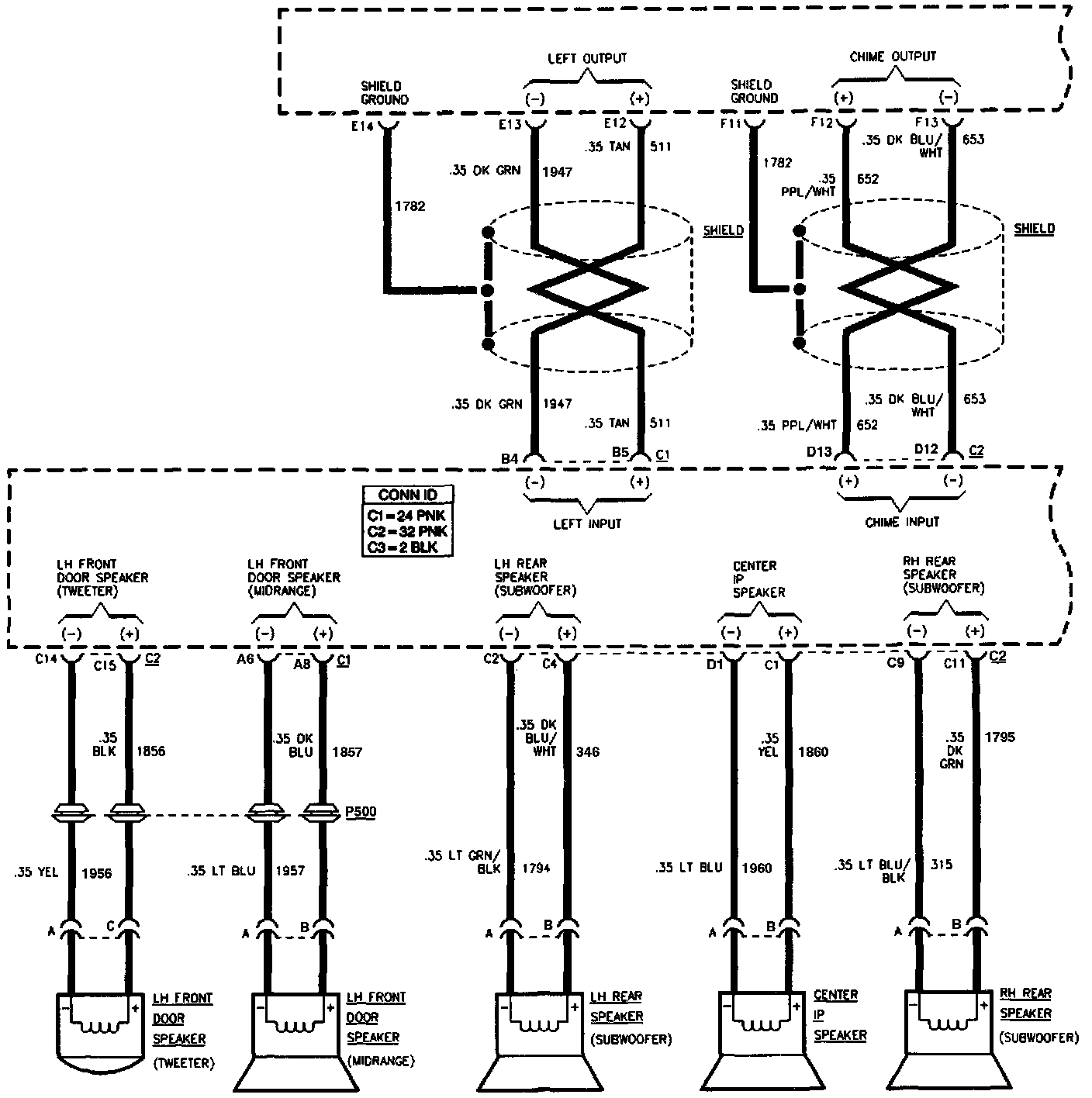

Audio Systems: With Active Audio System UQ6 (Part 1 Of 4):

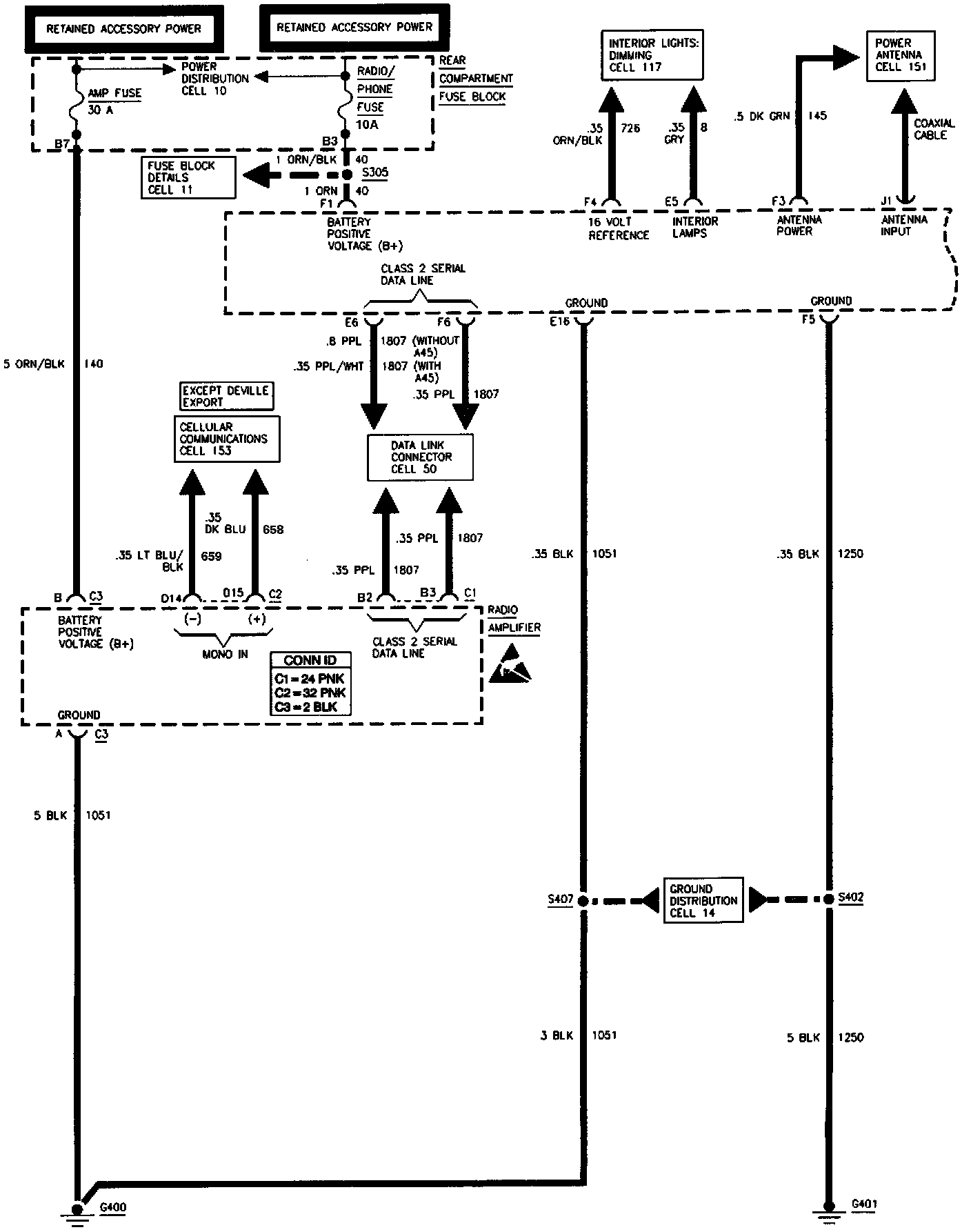

Audio Systems: With Active Audio System UQ6 (Part 2 Of 4):

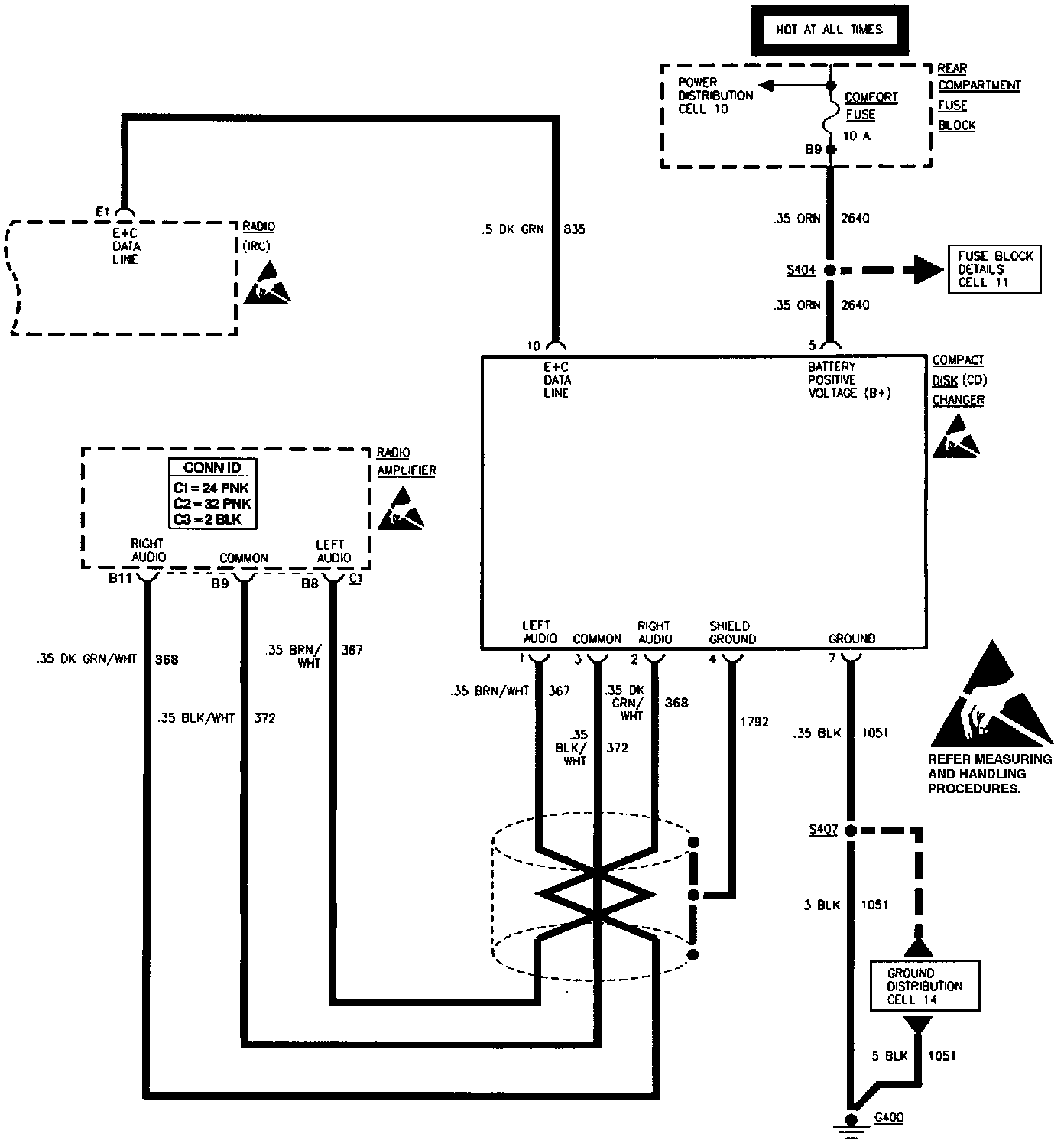

Audio Systems: With Active Audio System UQ6 (Part 3 Of 4):

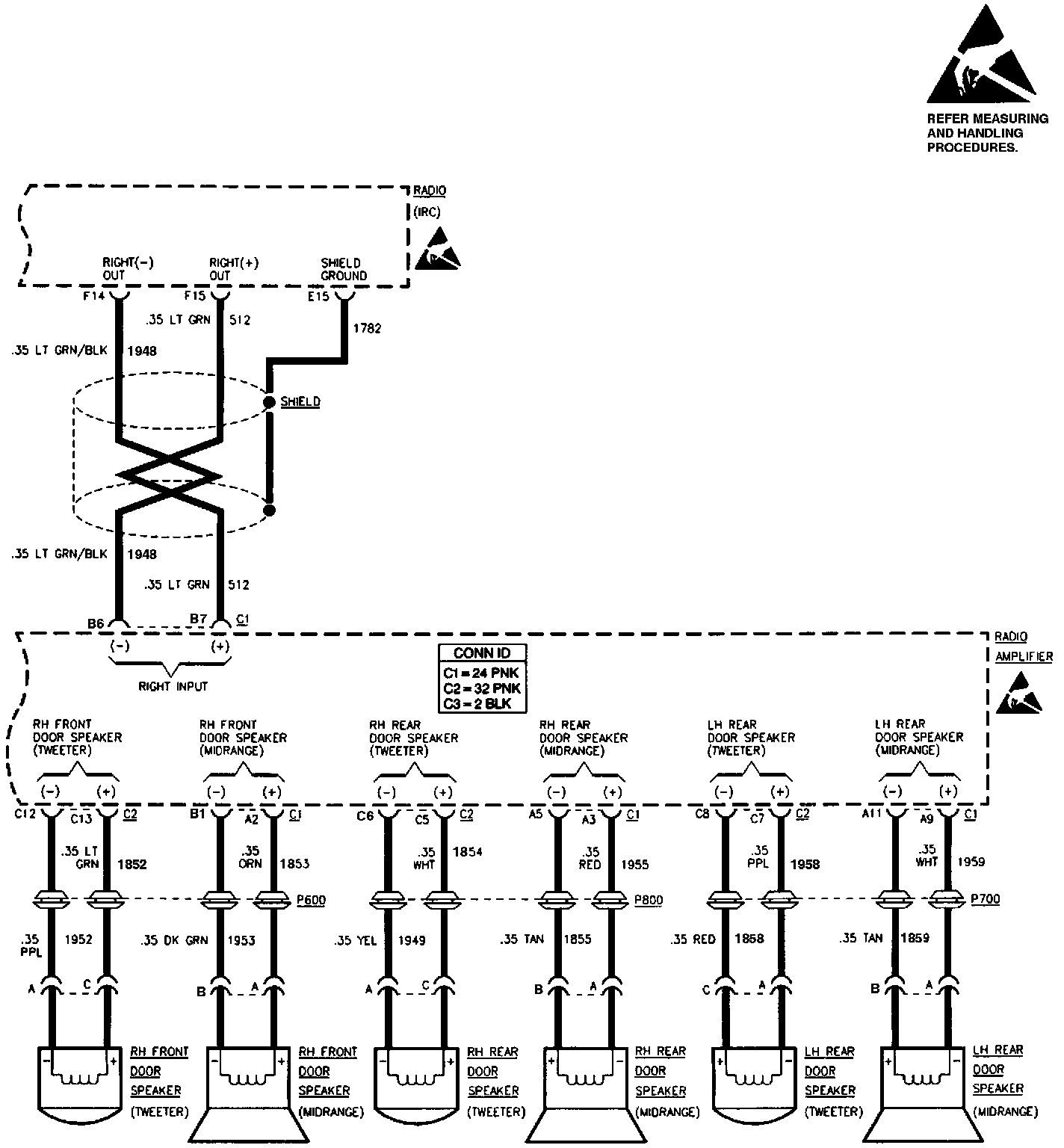

Audio Systems: With Active Audio System UQ6 (Part 4 Of 4):
