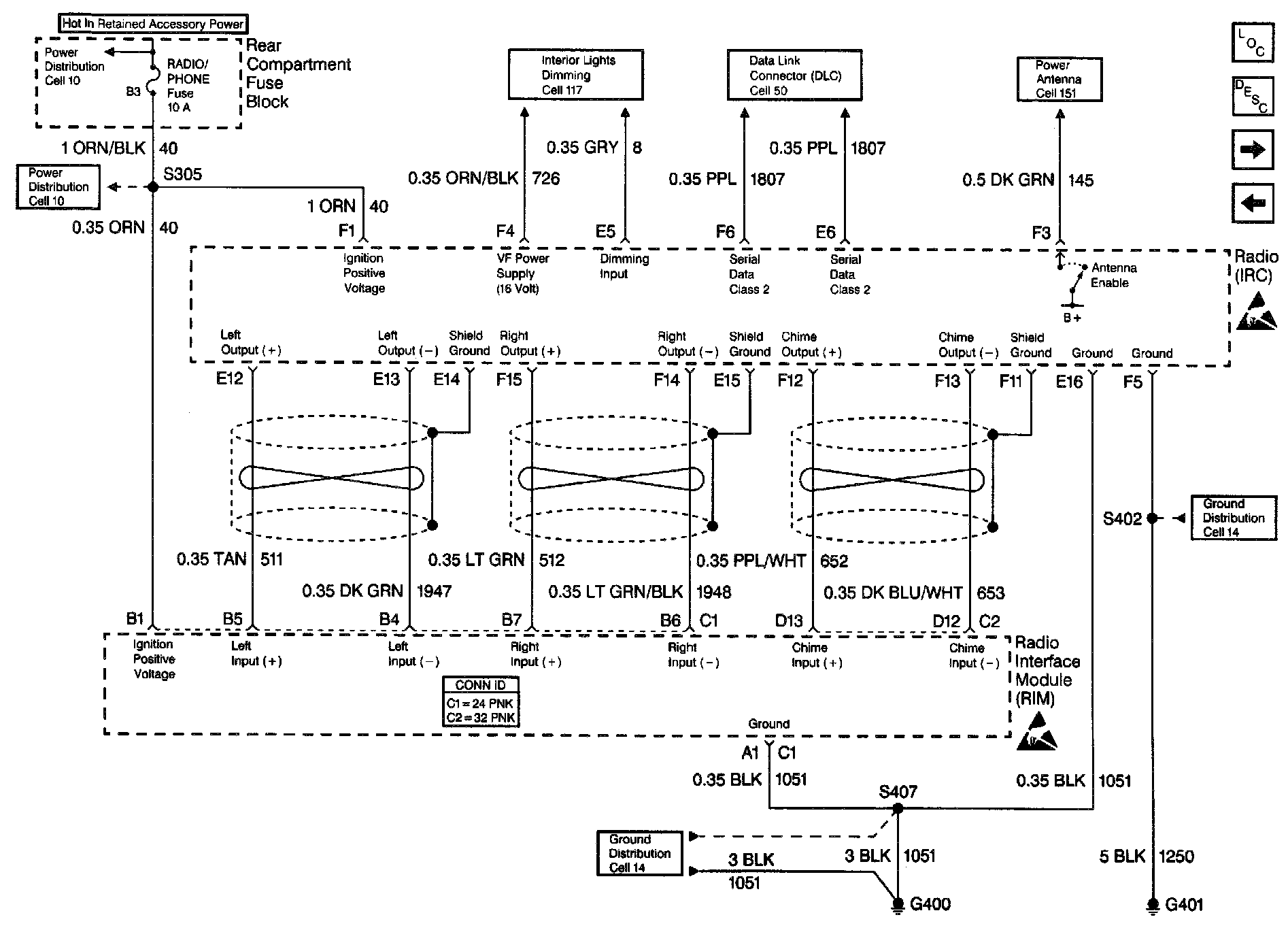

Radio and Radio Interface Module (W/ UQ4)

Radio/Audio System Schematics: Radio And Radio Interface Module (W/UQ4):
