Body Control Module (PZM) Power and Ground

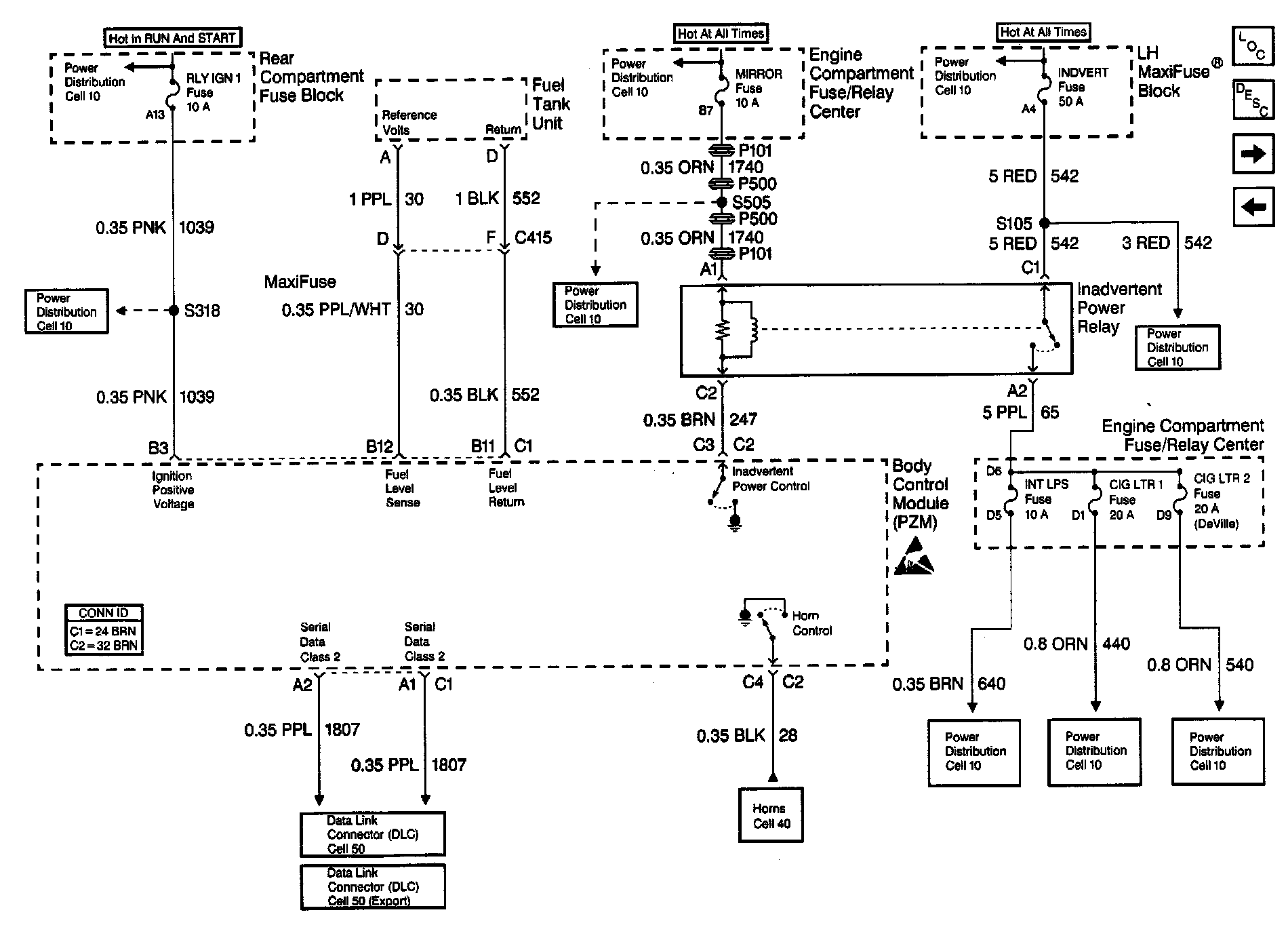

Body Control Module Schematics: Body Control Module (PZM) Power And Ground (Part 1 Of 2):



Body Control Module Schematics: Body Control Module (PZM) Power And Ground (Part 2 Of 2):
