Body Control Module (PZM) Inputs and Outputs

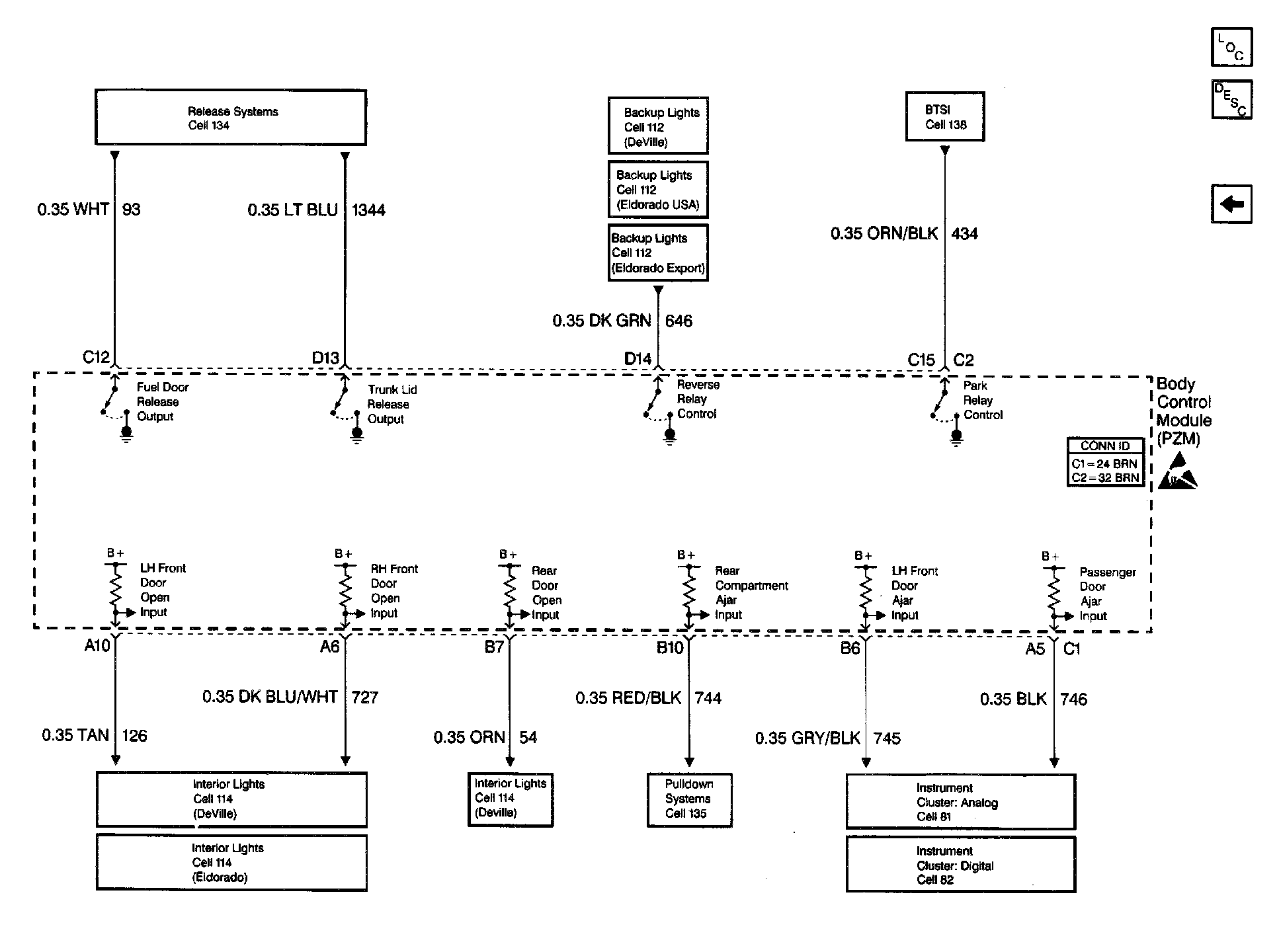

Body Control Module Schematics: Body Control Module (PZM), Inputs And Outputs (Part 1 Of 2):

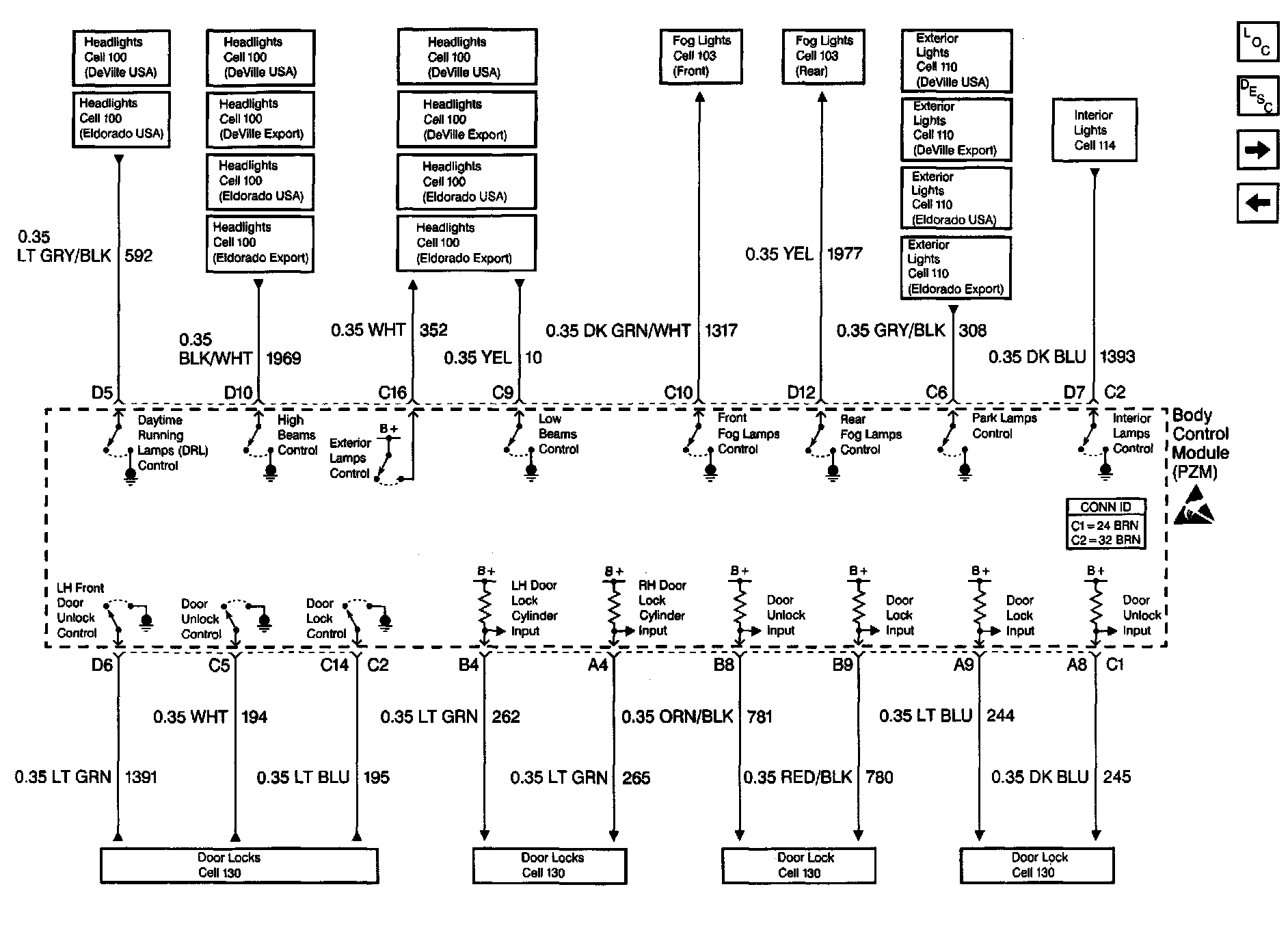

Body Control Module Schematics: Body Control Module (PZM), Inputs And Outputs (Part 2 Of 2):
