Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> General

General

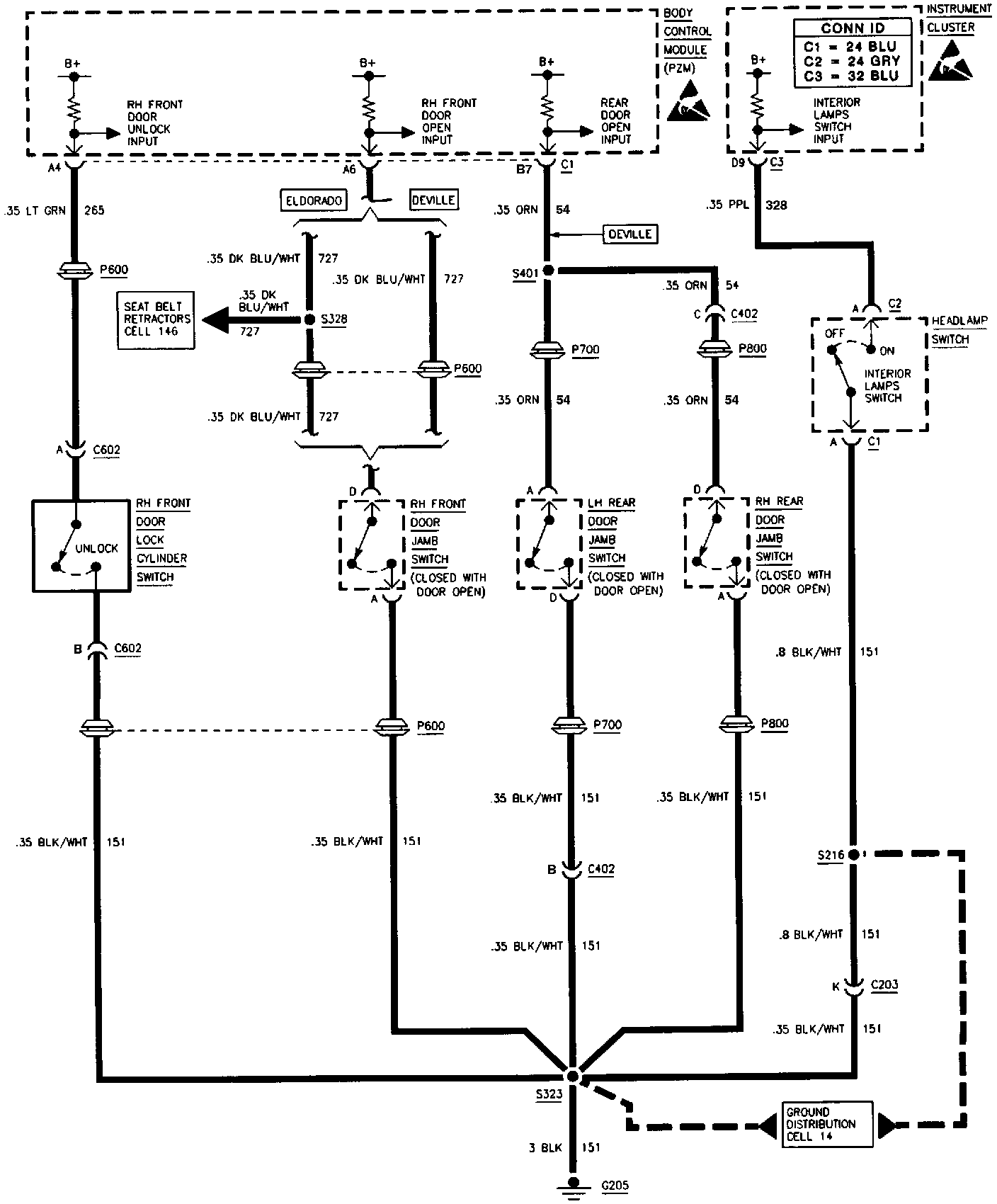

Interior Lights:

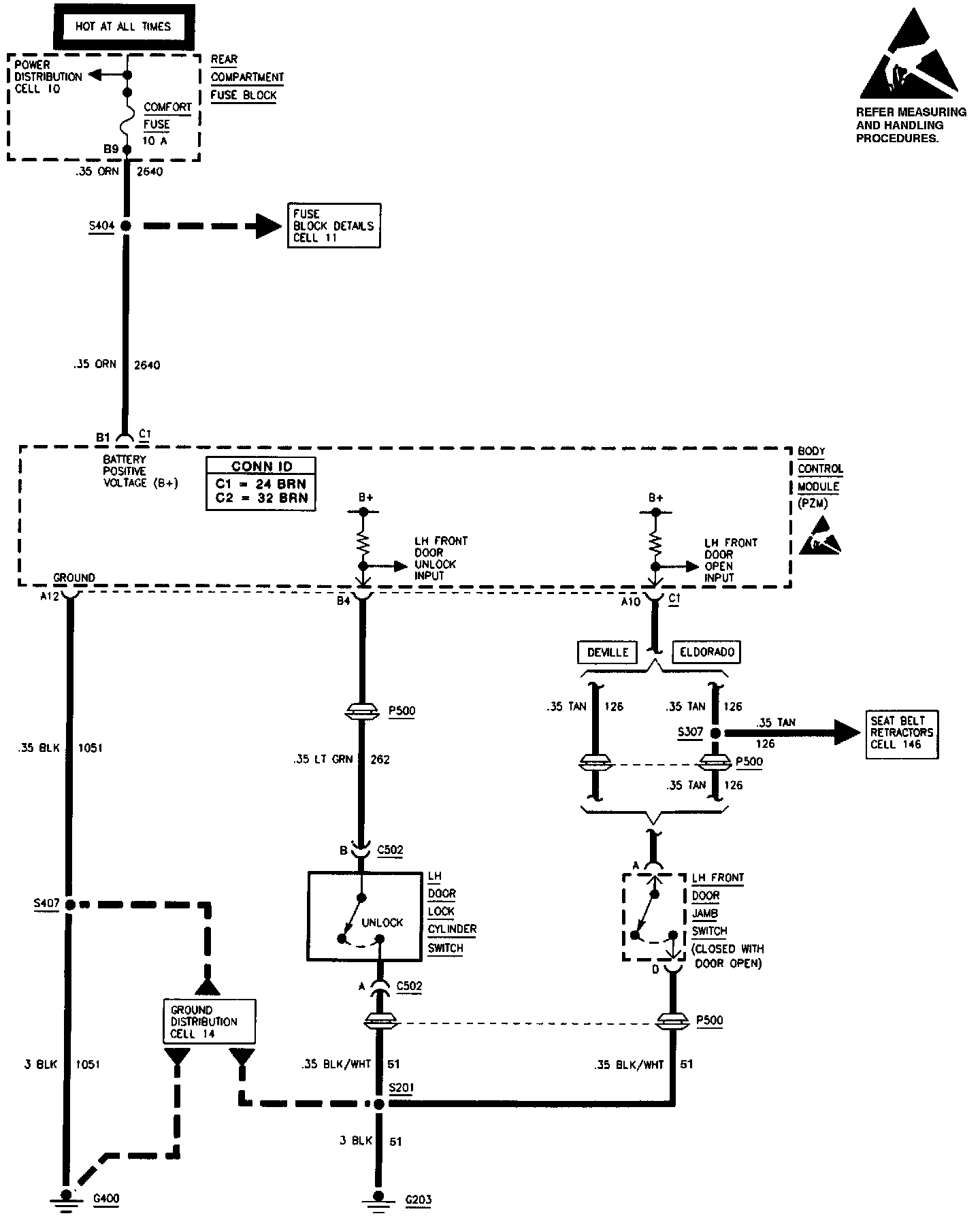

Interior Lights:



Interior Lights: Inadvertent Power Relay/Courtesy Relay:



Interior Lights:
