Cadillac
>>
1998
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>
With Daytime Running Lamps (DRL)
With Daytime Running Lamps (DRL)
Headlights: Headlamp Dimmer Switch, Headlamp Control (Part 2 Of 2):

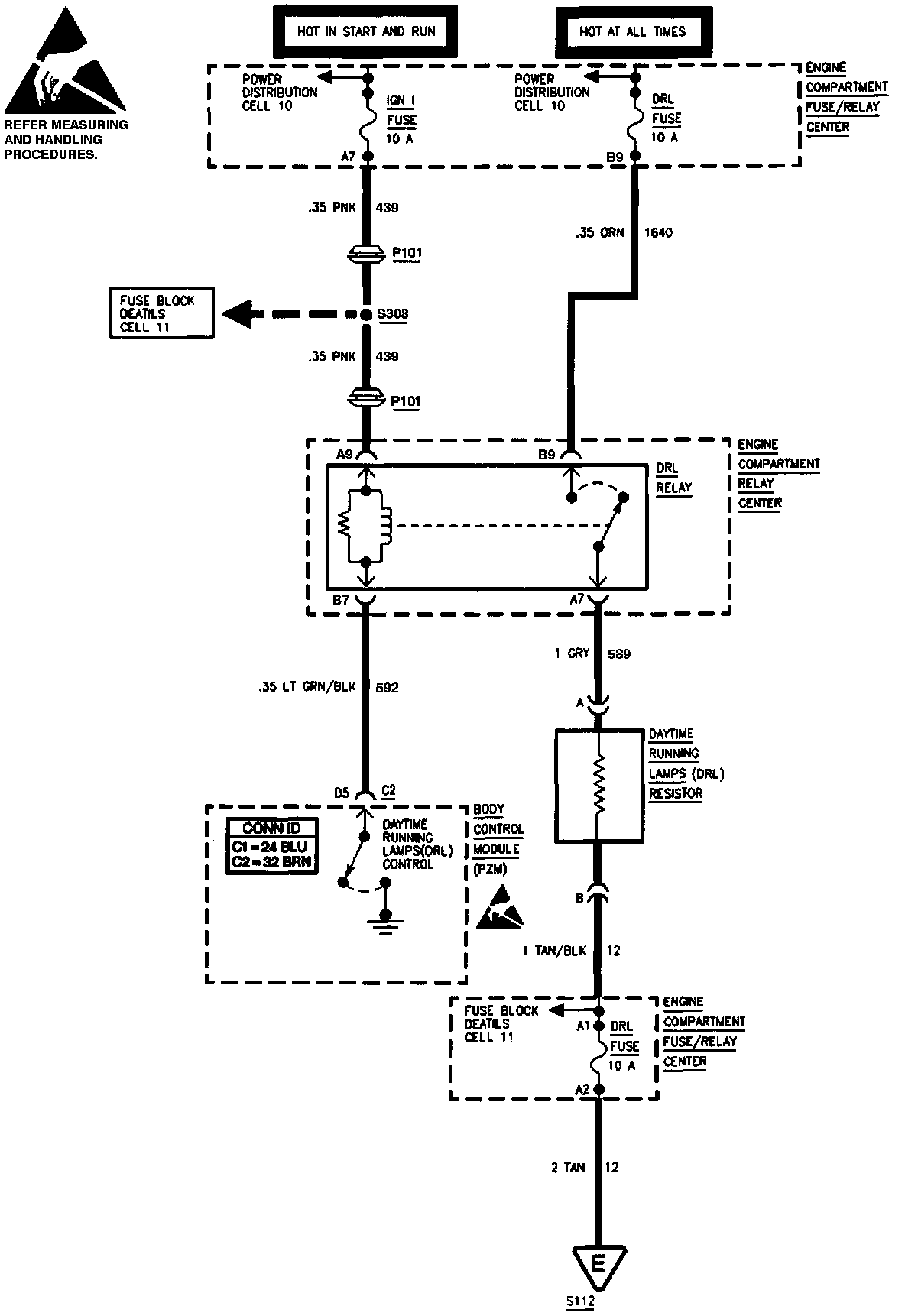

Headlights: Daytime Running Lamps (DRL):
