Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Dimmer Switch, Ambient Light Sensor, Twilight Sentinel

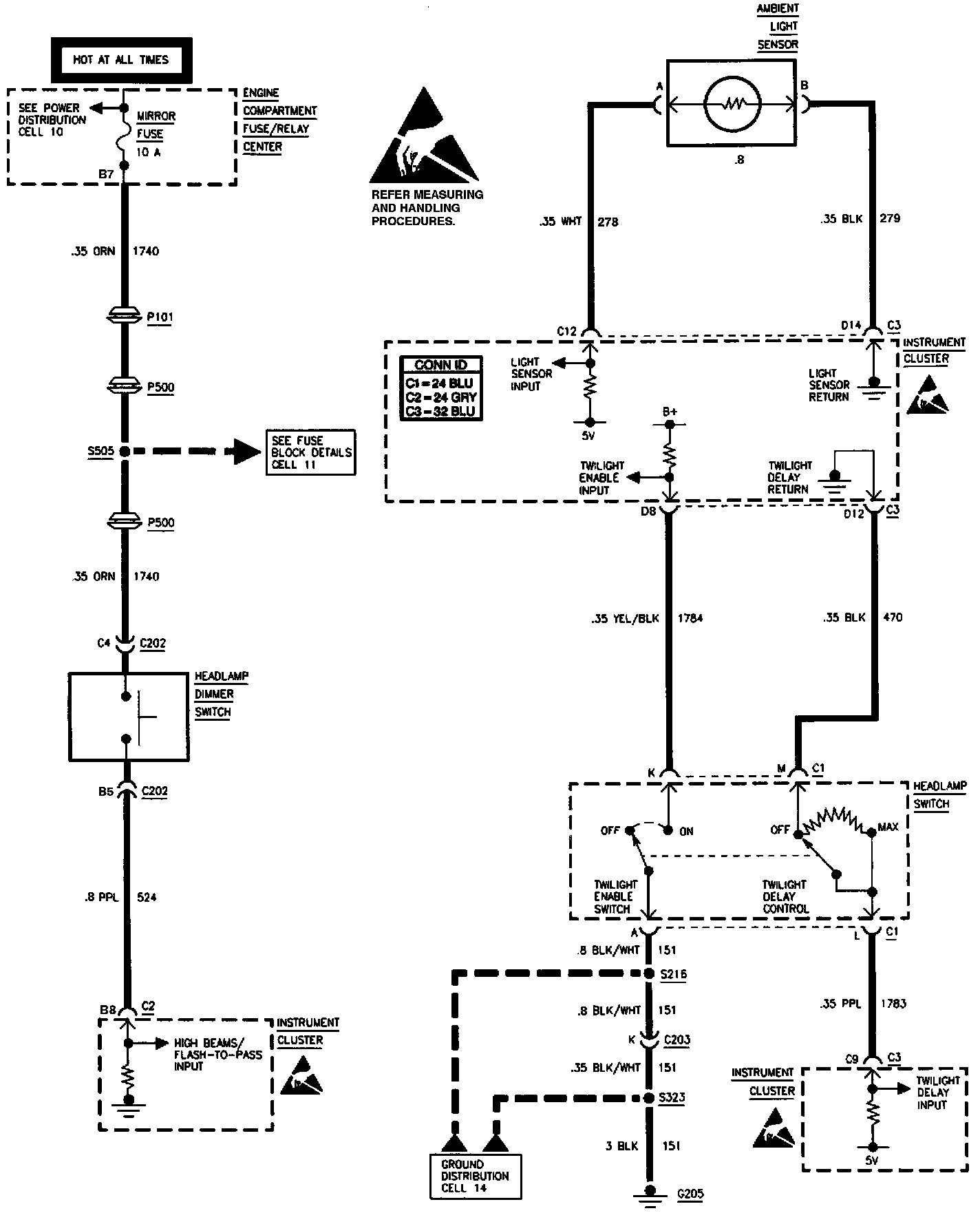

Headlamp Dimmer Switch, Ambient Light Sensor, Twilight Sentinel

Headlights: Headlamp Dimmer Switch, Ambient Light Sensor, Twilight Sentinel:
