Interior Lights Dimming and Park Lamp Switch I/Ps, Light Sensor
Interior Lights Dimming and Park Lamp Switch I/Ps, Light Sensor

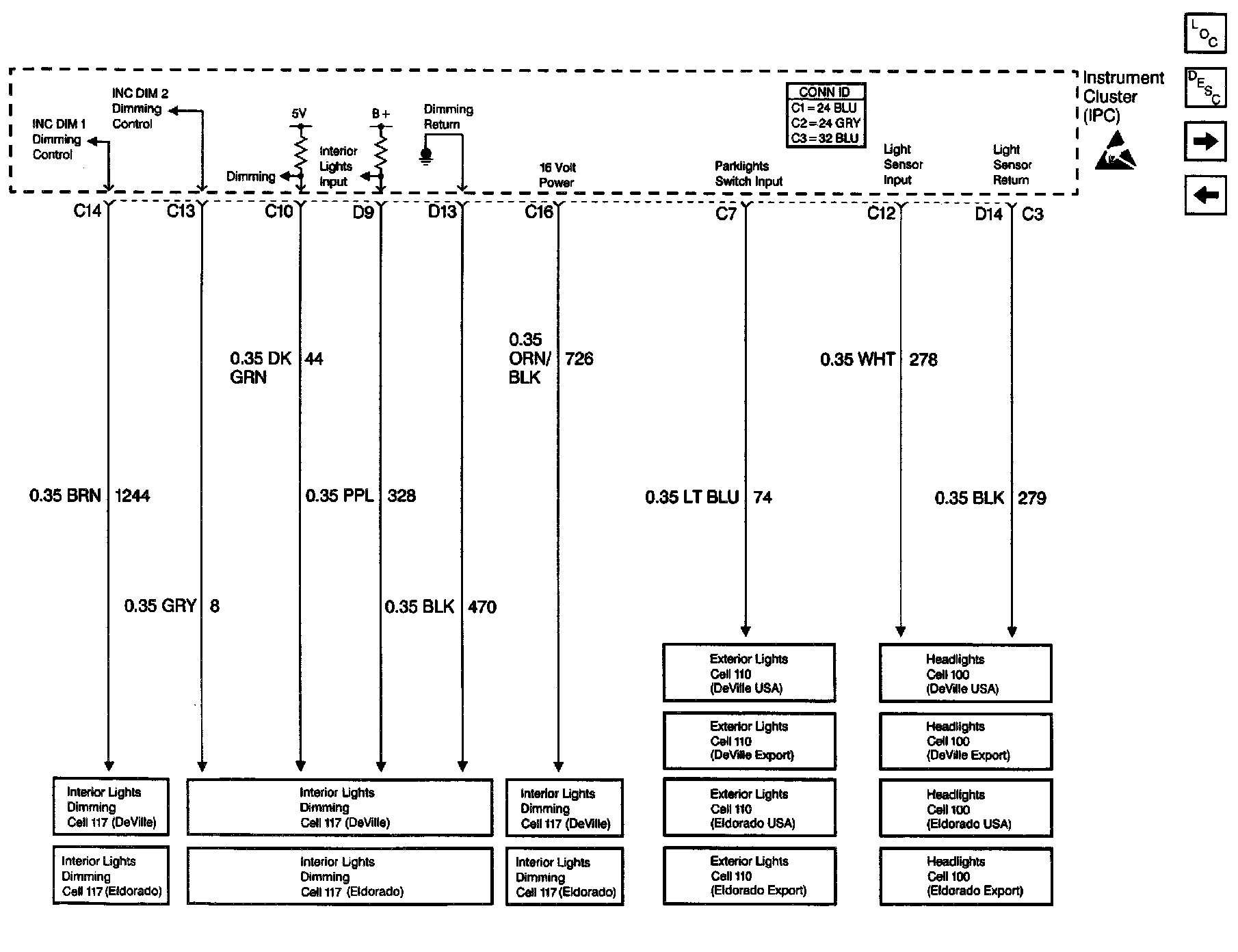

Instrument Cluster: Analog Schematics (Interior Lights Dimming And Park Lamp Switch Inputs, Light Sensor):
