Fog Lamp Switches, Twilight, EBTCM, Release System

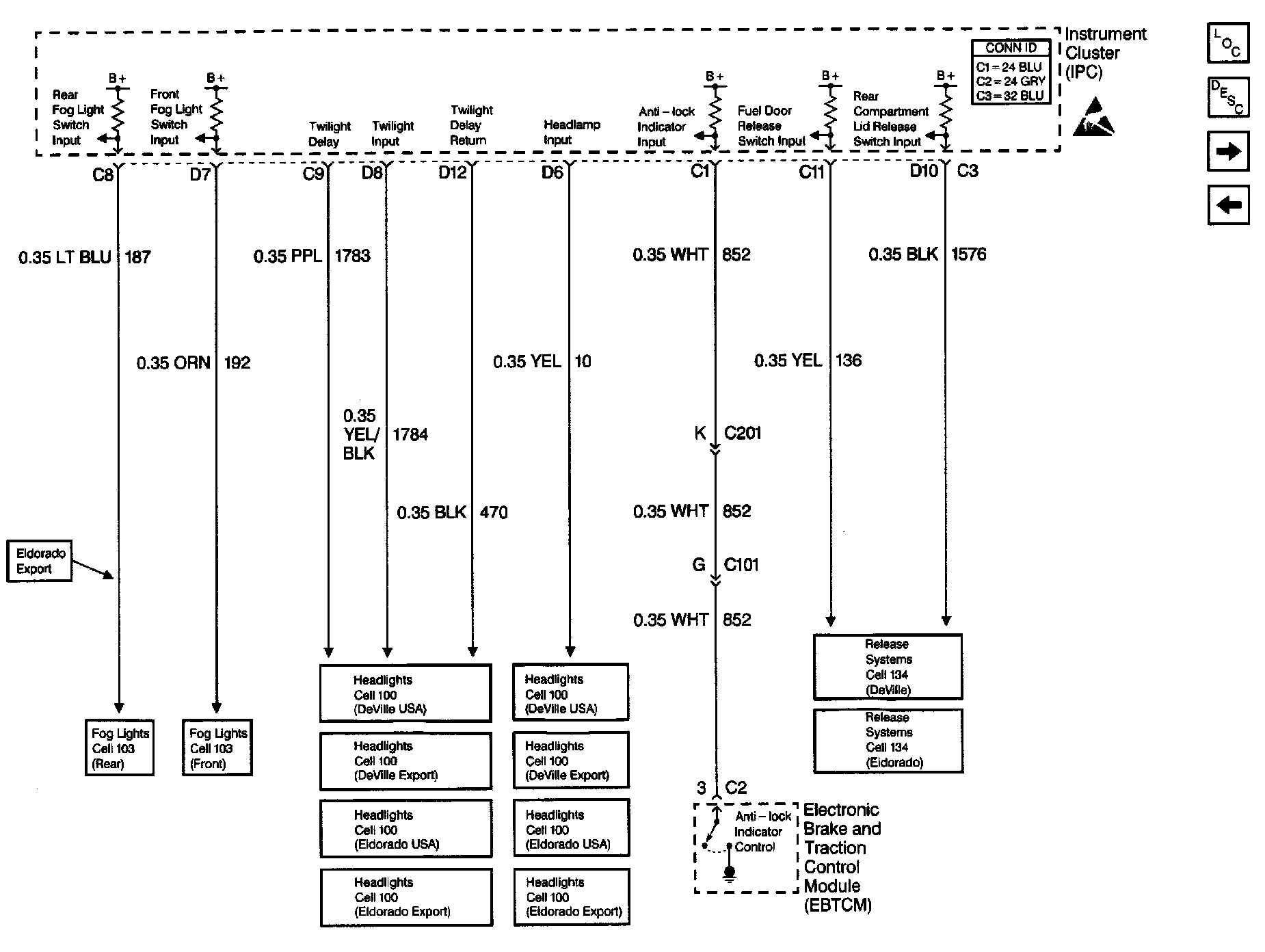

Instrument Cluster: Analog Schematics (Fog Lamp Switches, Twilight, EBTCM, Release System) (Part 1 Of 2):

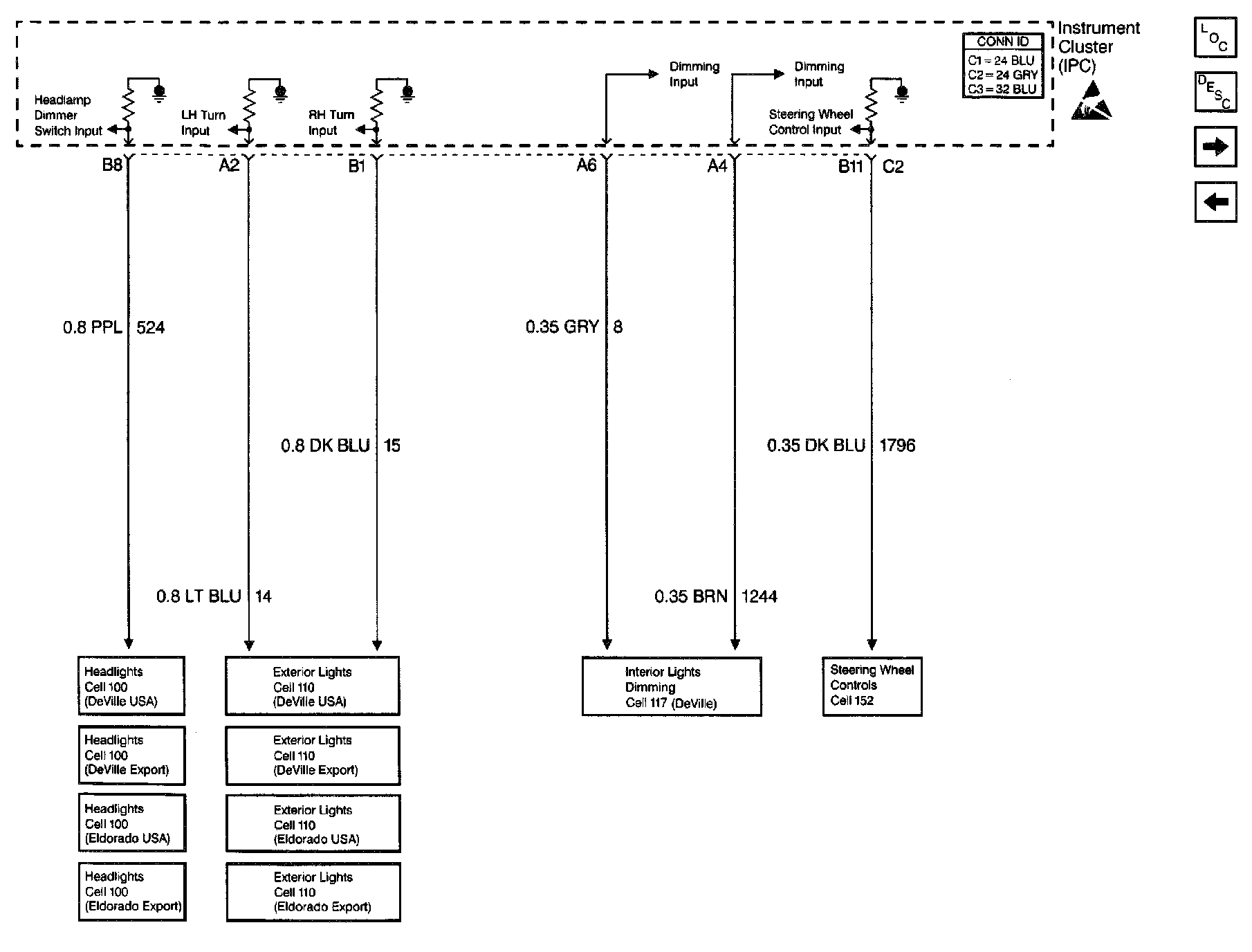

Instrument Cluster: Analog Schematics (Fog Lamp Switches, Twilight, EBTCM, Release Systems) (Part 2 Of 2):
