Instrument Cluster Analog Schematics
>>
Driver Information Center Switch (With D55)
Driver Information Center Switch (With D55)

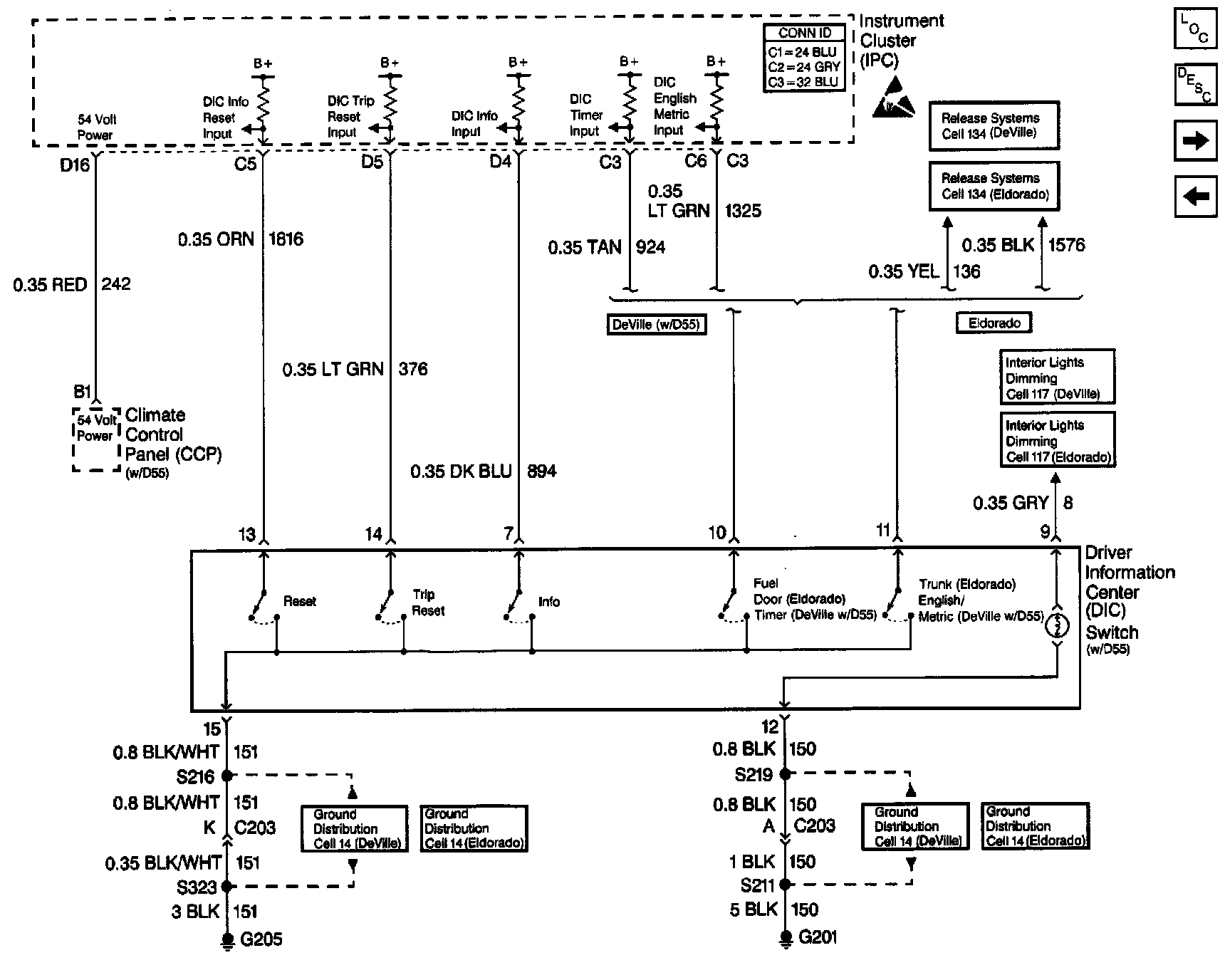

Instrument Cluster: Analog Schematics (Driver Information Center Switch (WITH D55)):
