C1 (CVRSS Module)
C1 (CVRSS Module)
Suspension CVRSS Module Connector C1 (Part 2 Of 2):

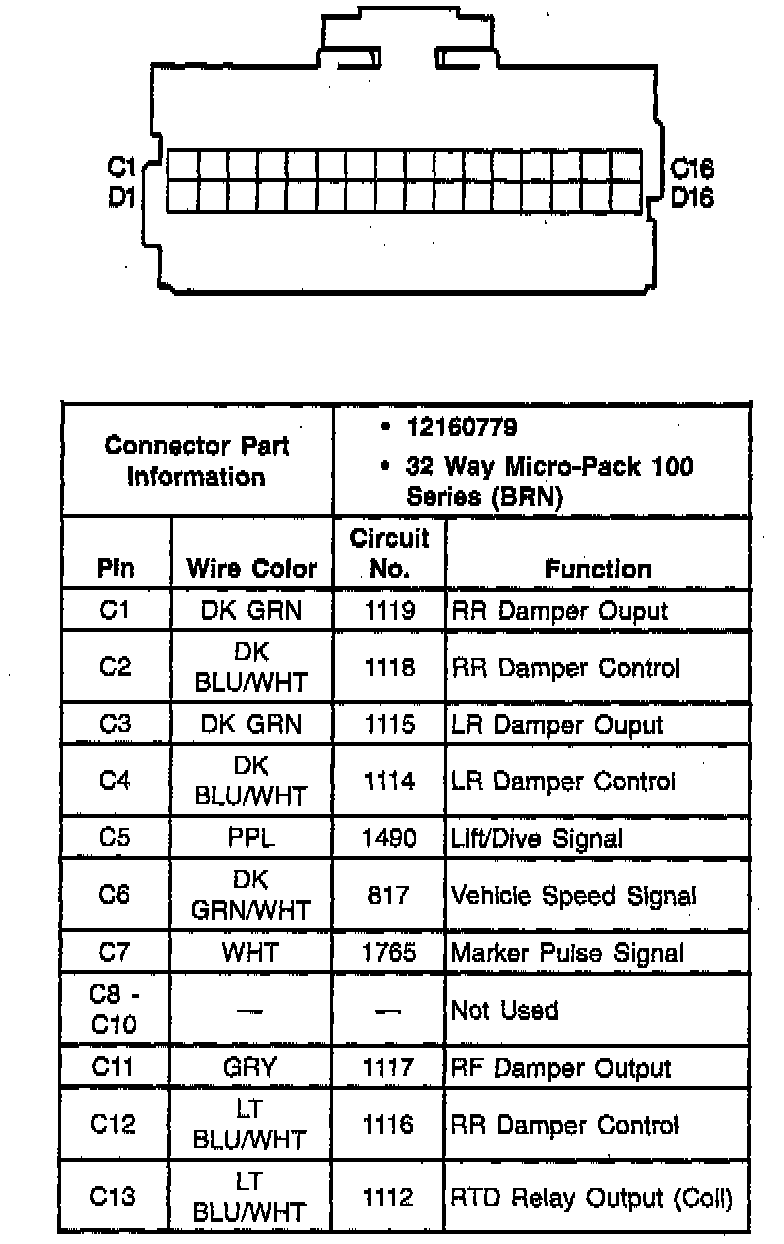

Suspension CVRSS Module Connector C1 (Part 1 Of 2):
