System Diagram

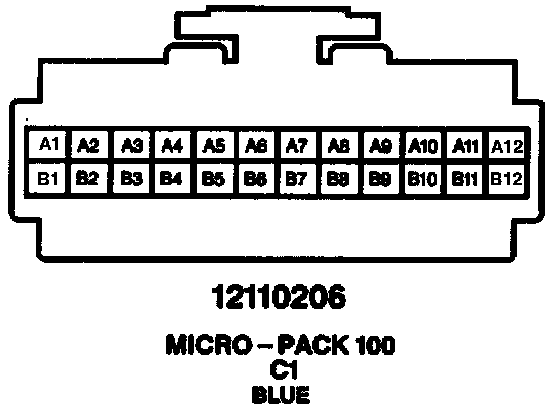

Radio Interface Module (RIM) C1:

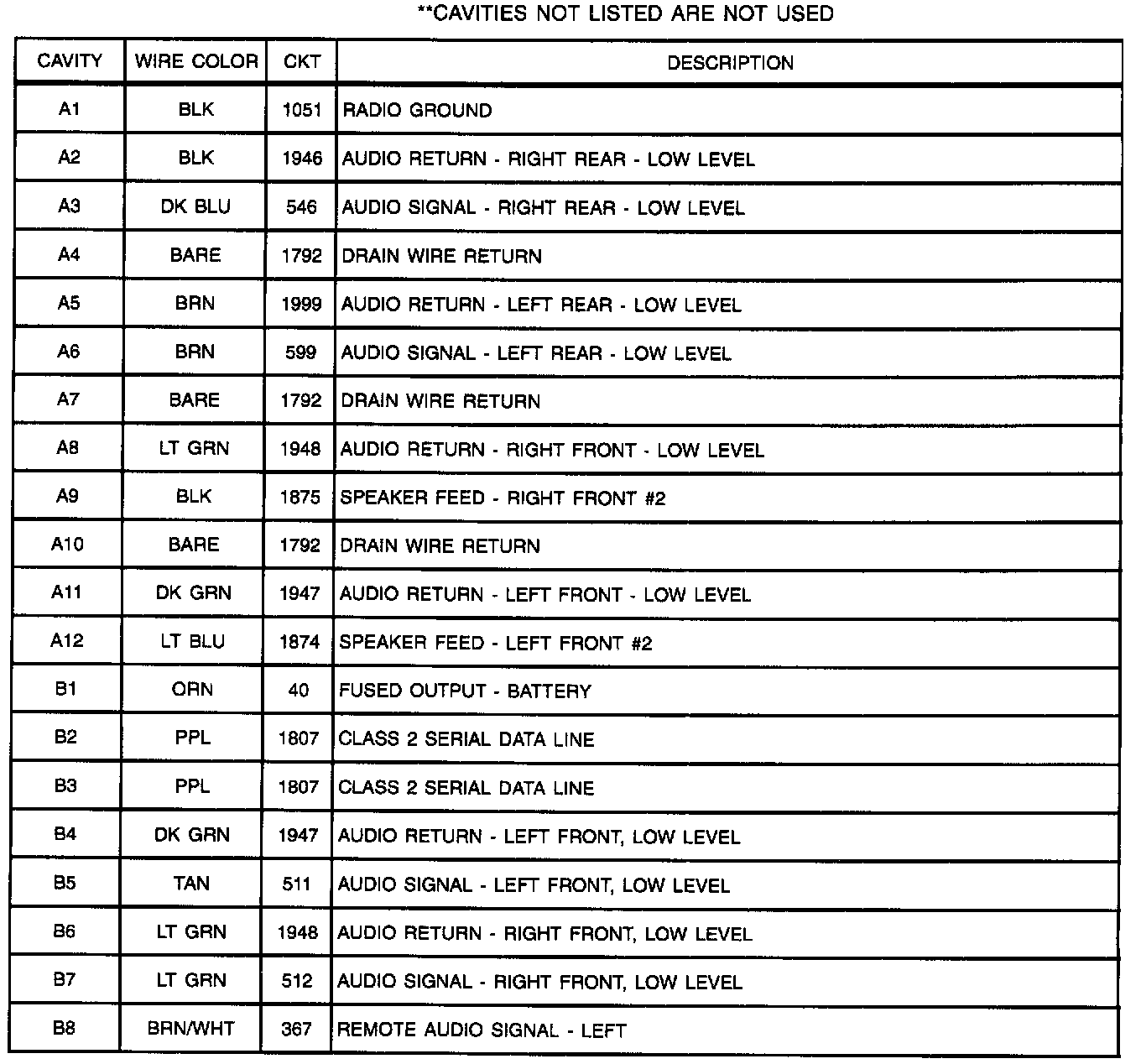

Radio Interface Module (RIM) C1 (Part 1 Of 2):

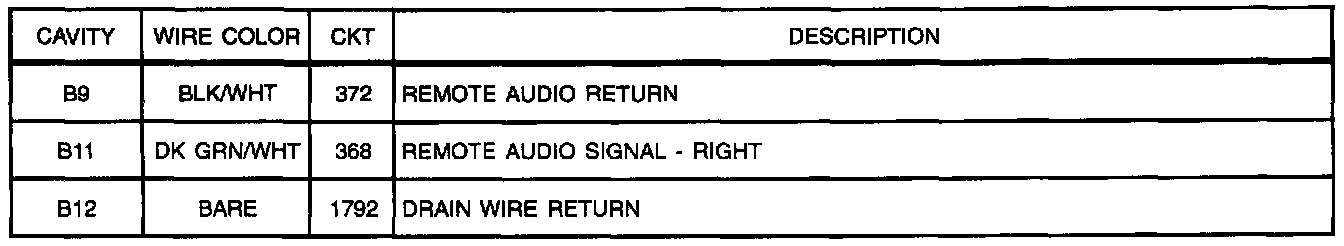

Radio Interface Module (RIM) C1 (Part 2 Of 2):



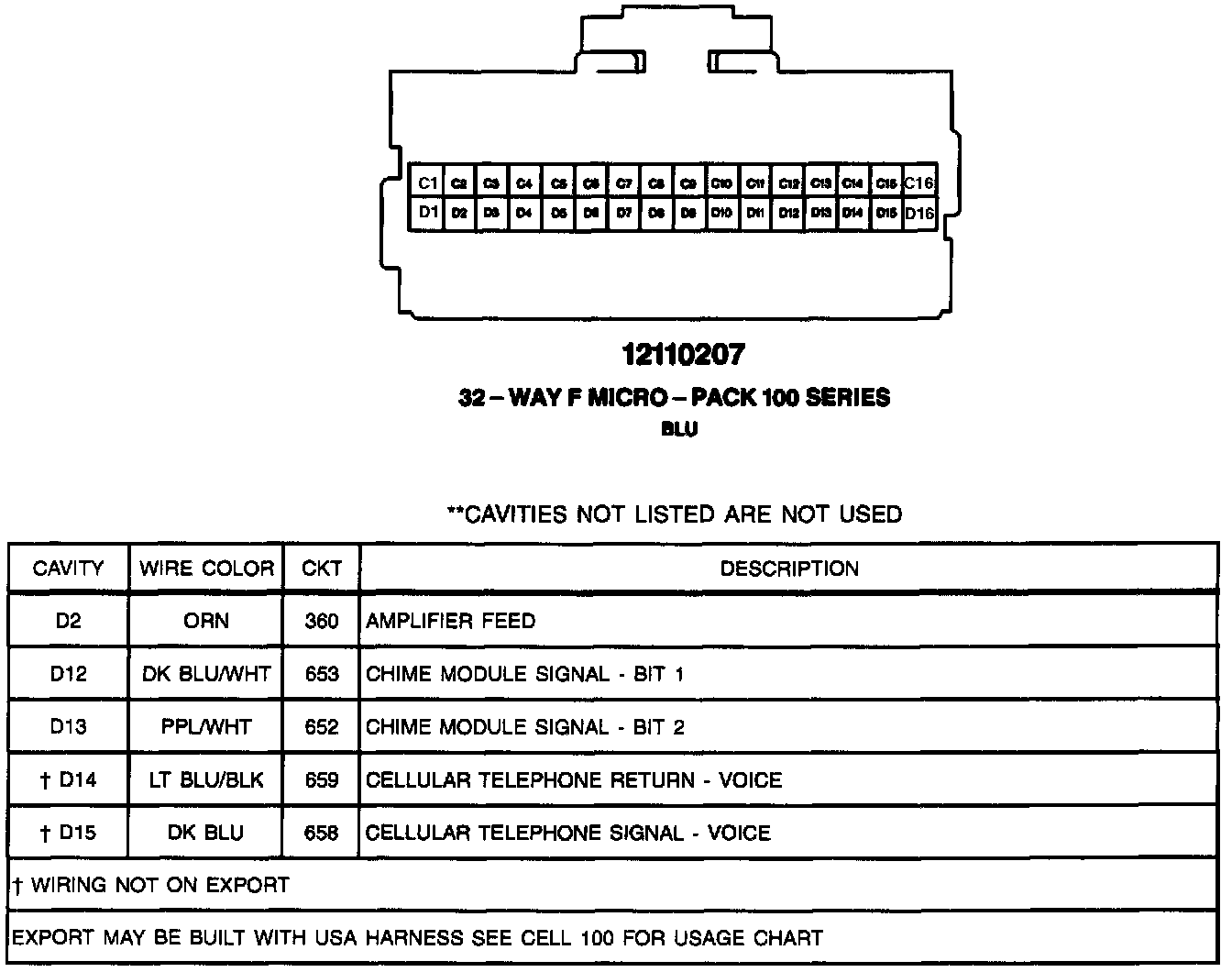

Radio Interface Module (RIM) C2:
