Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Memory Seat Module (MSM) >> C3

C3

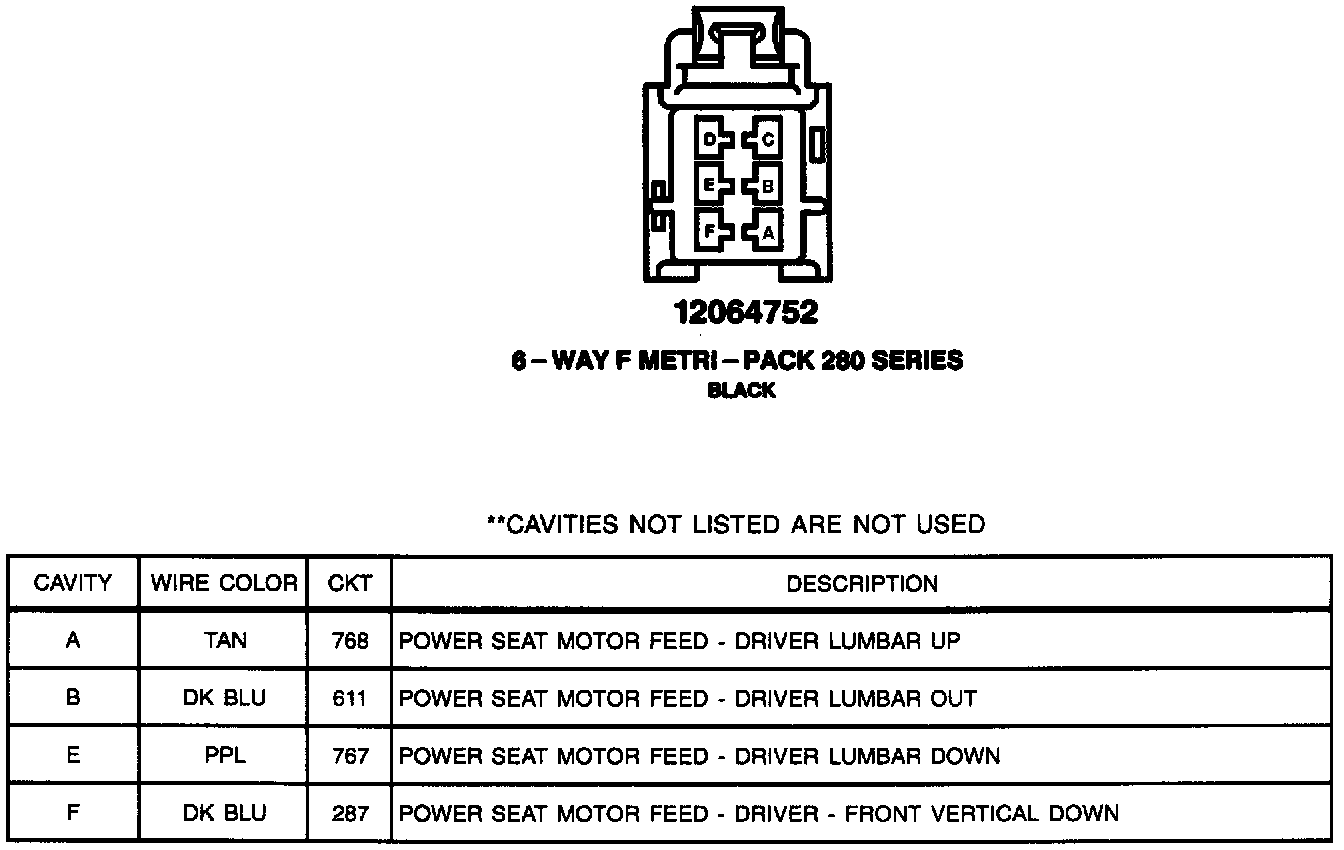

Memory Seat Module (MSM) C3:
