Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater & A/C Programmer >> Heater & A/C Programmer C2

Heater & A/C Programmer C2

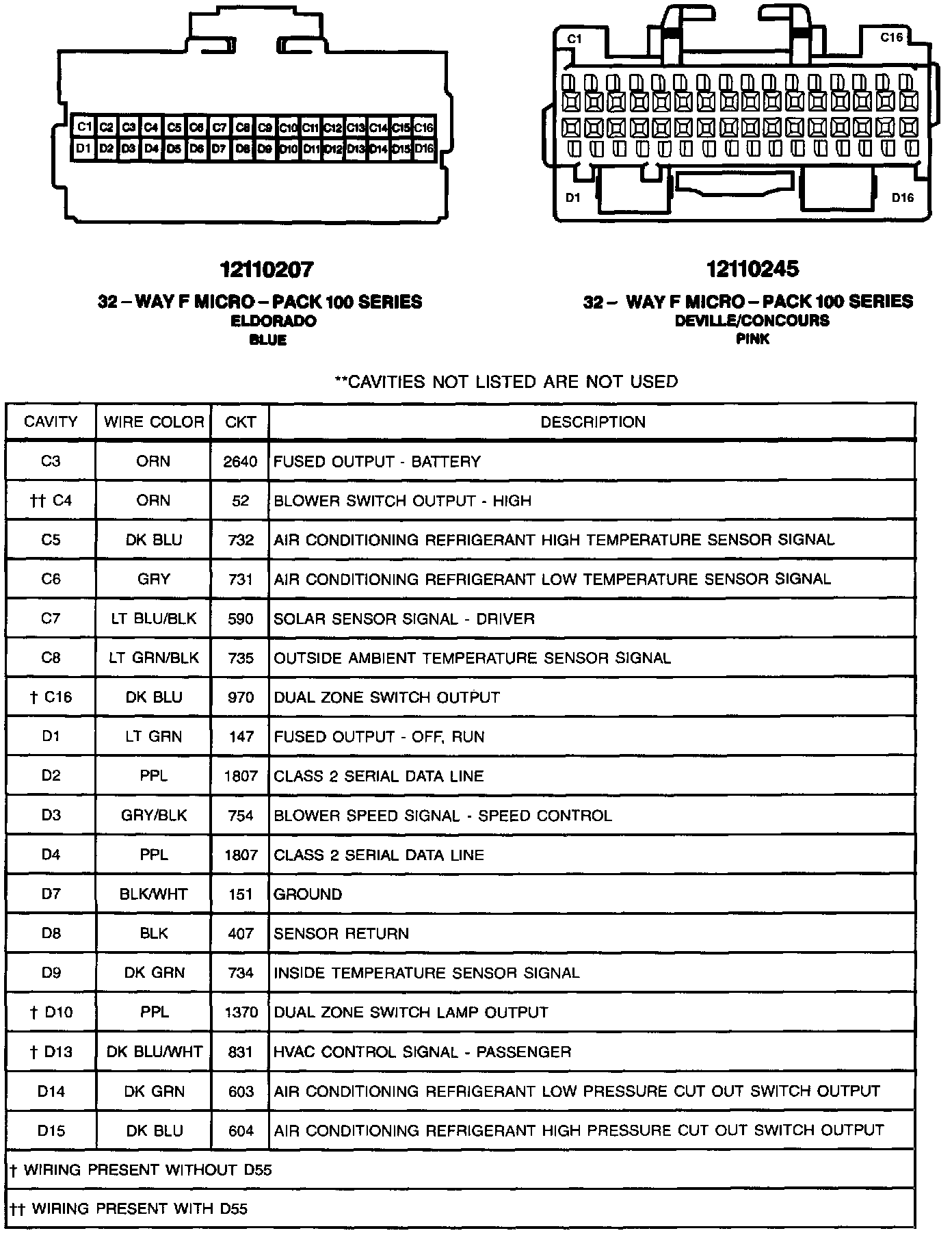

Heater And A/C Programmer C2:
