Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Sensing and Diagnostic Module (SDM)

Sensing and Diagnostic Module (SDM)

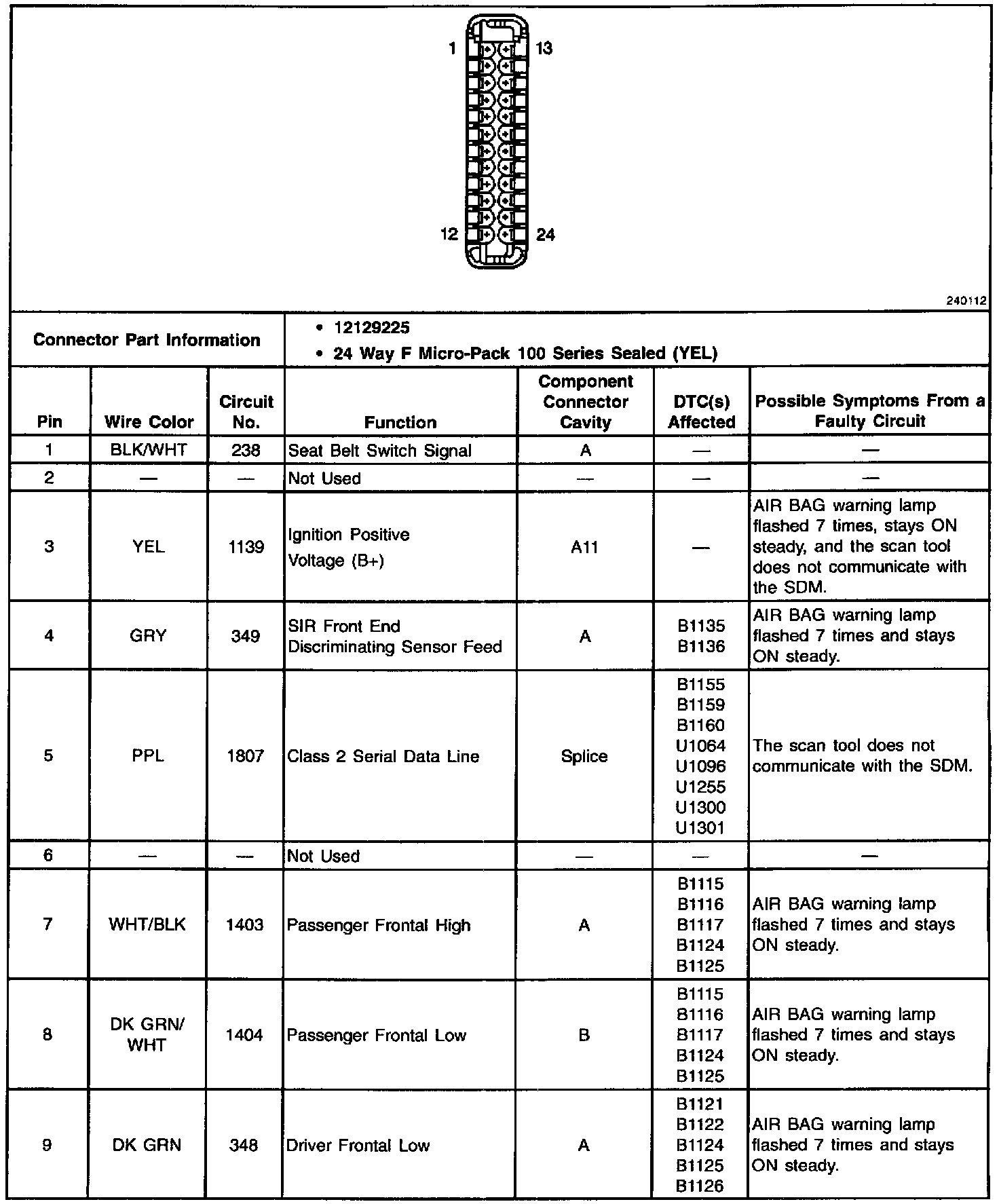

Wiring Diagram:

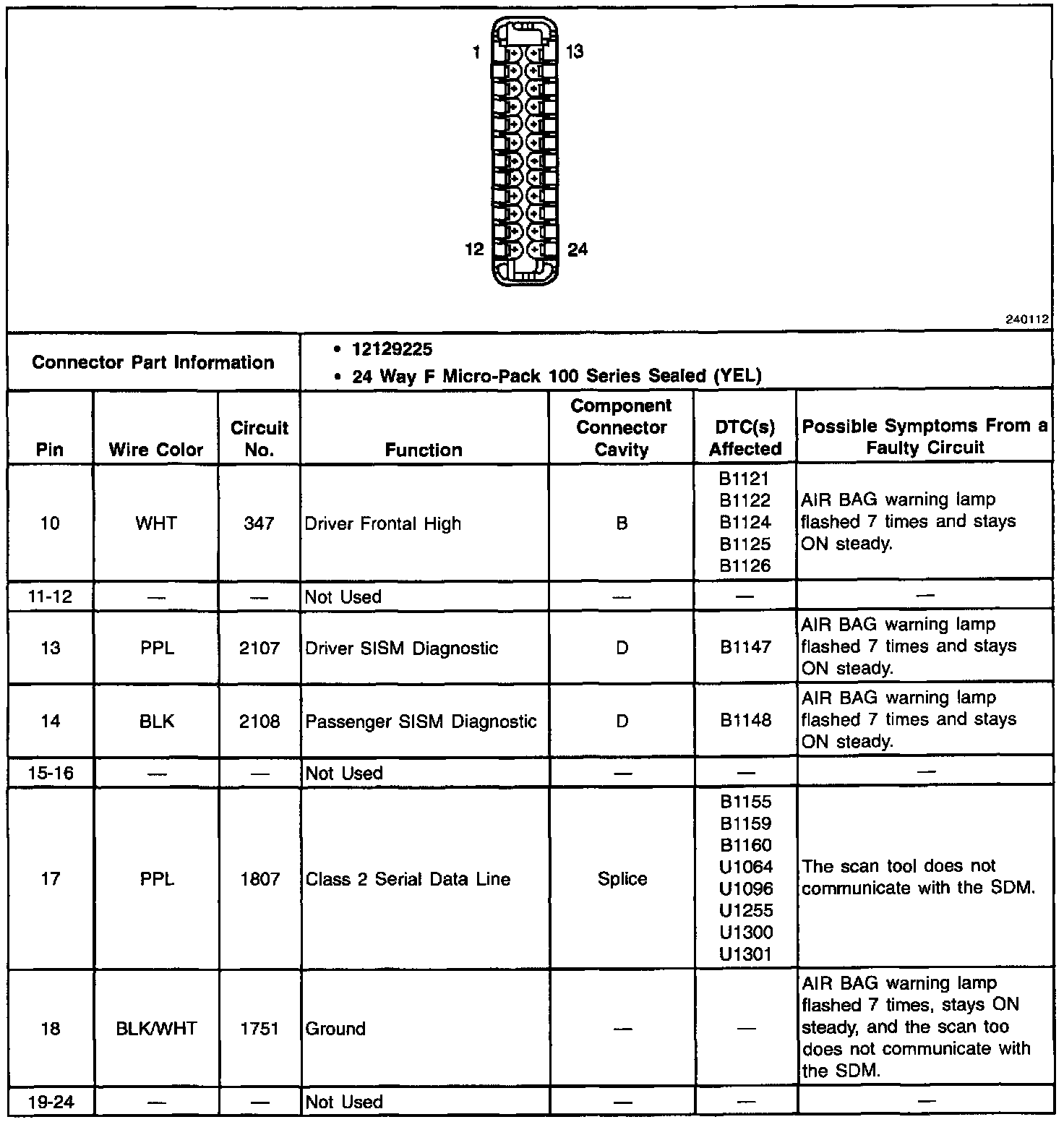

Wiring Diagram:
