Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Blower Motor Resistor Module, Rear

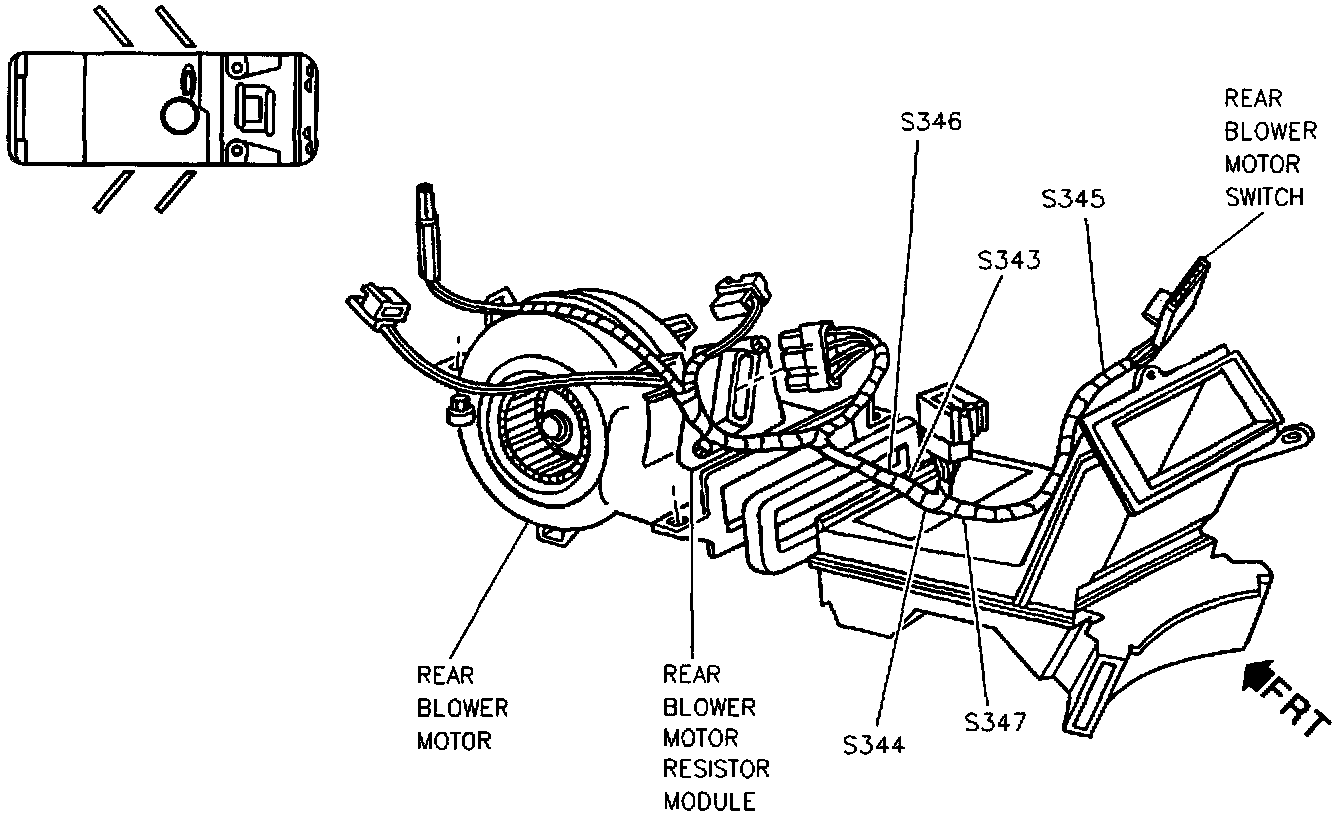

Blower Motor Resistor Module, Rear

Below The Center Console:
