Home
>>
Cadillac
>>
1998
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Automatic Level Control Compressor
Automatic Level Control Compressor

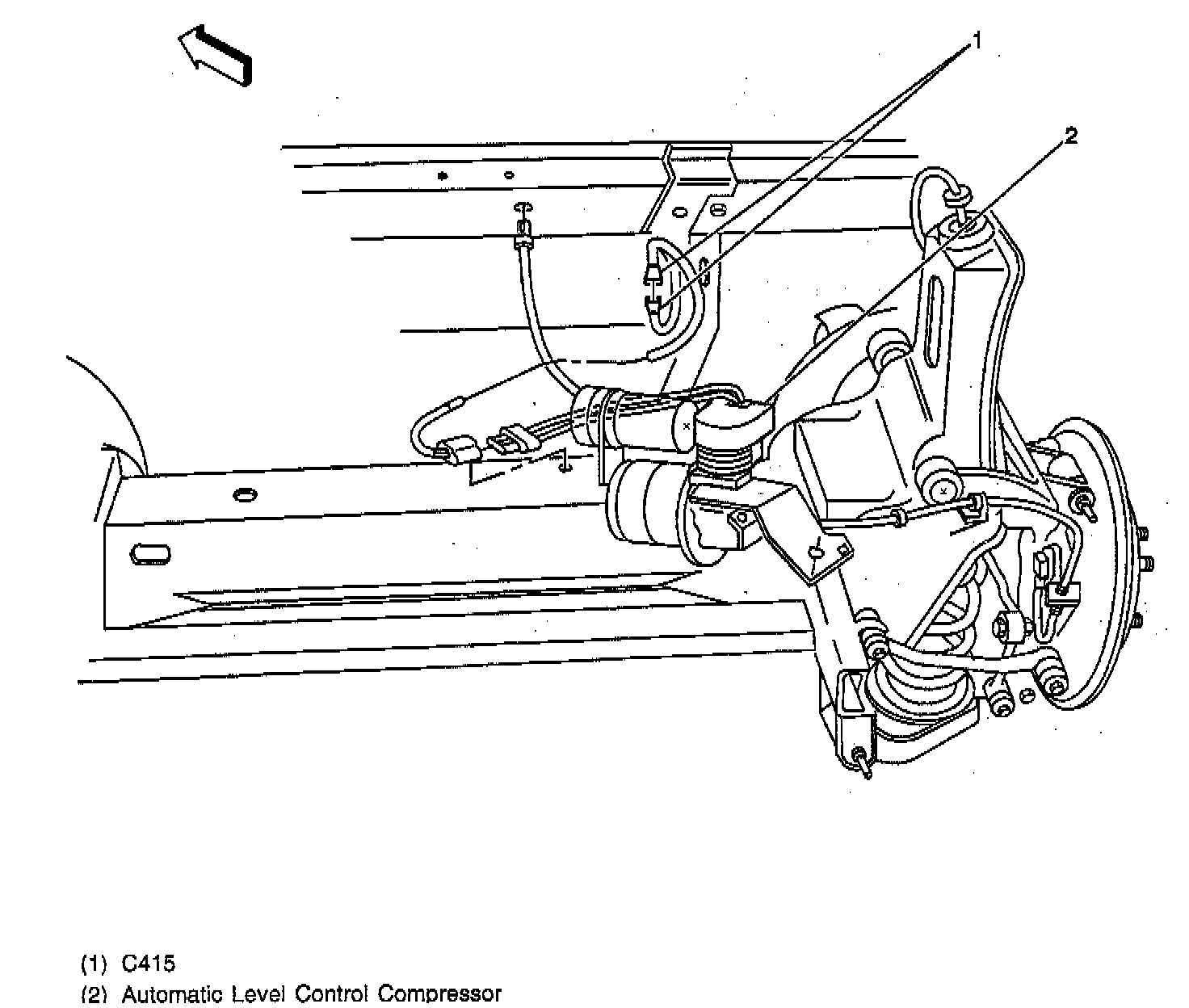

Below The RH Rear Of The Vehicle:

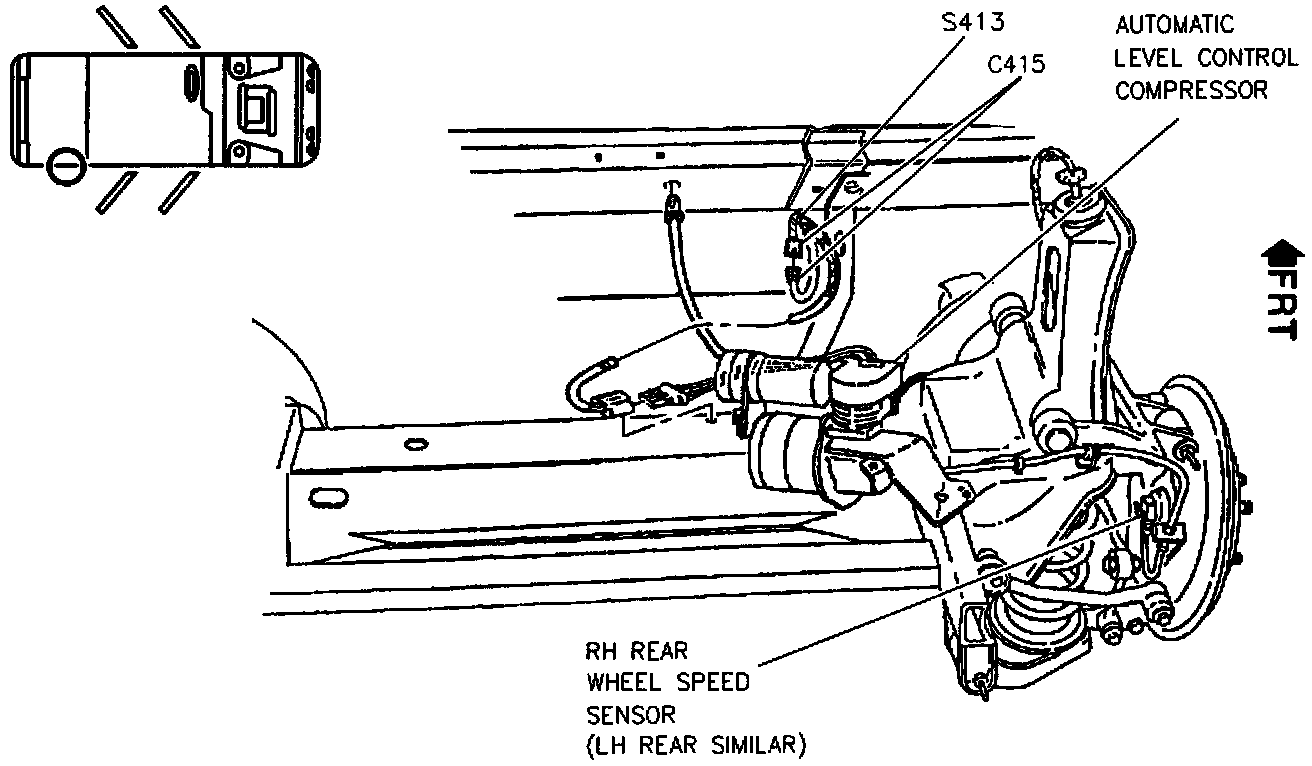

Below Right Hand Of The Vehicle (Part 2 Of 2):
