Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Without V4U

Without V4U

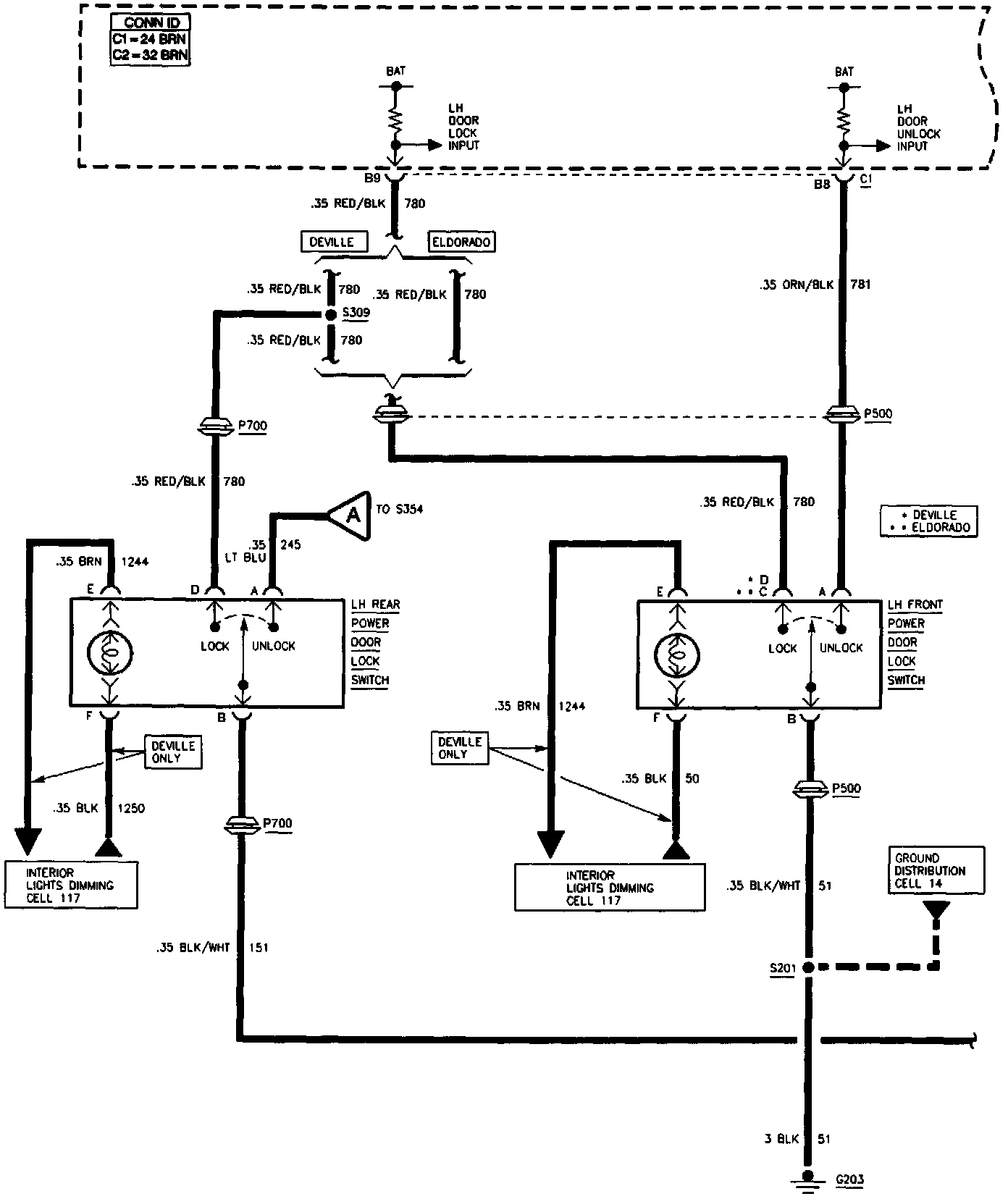

Power Door Locks Except V4U:



Power Door Locks Except V4U:
