Instrument Panel Ventilation Outlets

REMOVAL PROCEDURE





IMPORTANT: Do not damage the air outlet deflector surface.

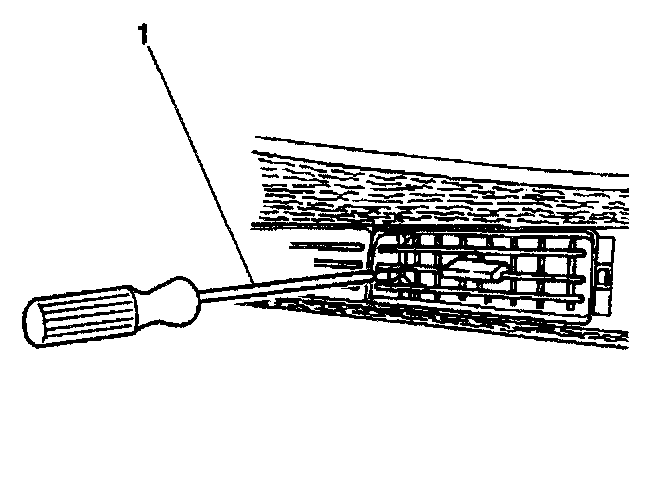

Use a thin-bladed tool (1) in order to remove the 4 air outlet deflectors from the front of the instrument panel. Release the tab on the inboard side of the deflectors between the deflector and deflector housing, while pulling the air outlet deflectors out.

INSTALLATION PROCEDURE

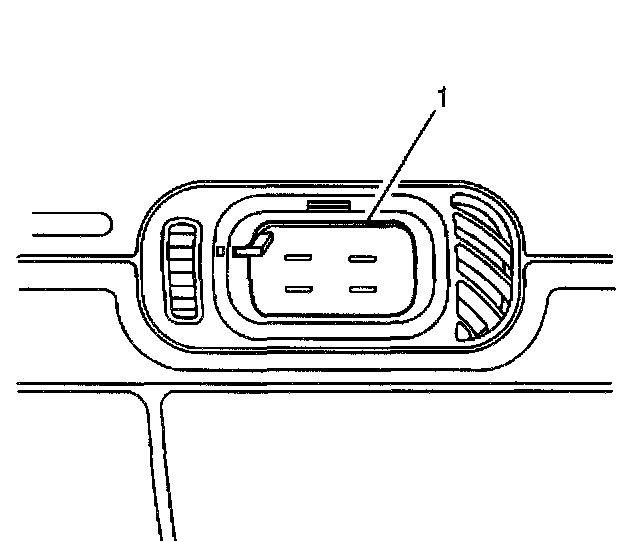

Align the air outlet deflectors to the IP openings (1).
Gently push the deflectors into place.
