Instrument Panel Trim Replacement - Lower Center




REMOVAL PROCEDURE

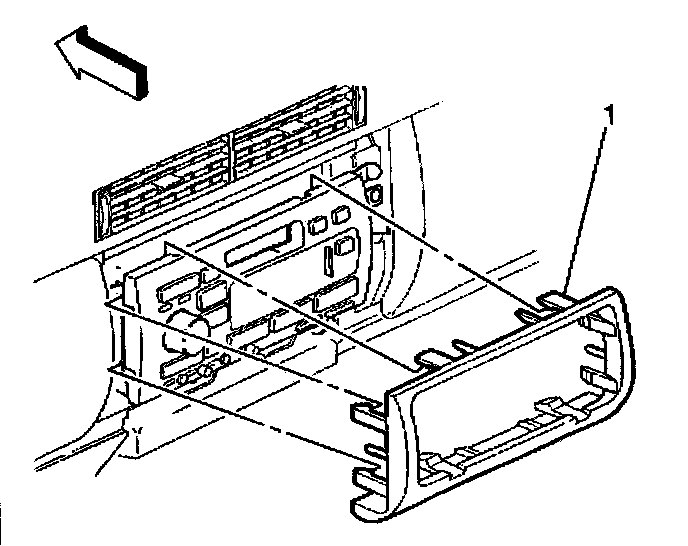

Remove the radio trim plate (1) by pulling rearward.

INSTALLATION PROCEDURE
Align the trim plate (1) to the radio.
Push inward in order to fasten the trim plate to the radio.
