Bin Assembly

REMOVAL PROCEDURE
1. Lift the armrest to the upward position.

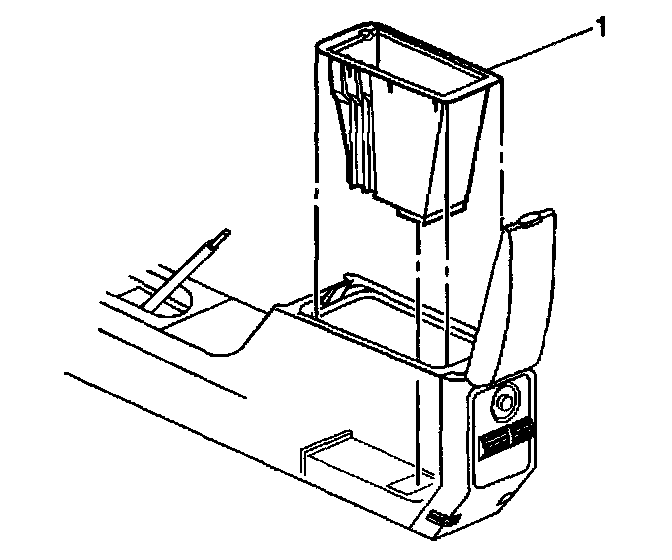

2. Pull up and out on the storage compartment (1) in order to remove the storage compartment.

INSTALLATION PROCEDURE
1. Position the compartment (1) over the console.

IMPORTANT: The compartment must be fully seated into position by hand pressure. Dropping the console armrest onto a unseated compartment can cause damage to the armrest. Make certain the air outlet block out cover on the bottom of the compartment is positioned in the hole in the air duct.

2. Slide the compartment (1) into place.
When a audible click is heard the compartment is fully seated.
3. Reposition the armrest to the downward position.
