Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Component Tests and General Diagnostics >> Chart 4

Chart 4

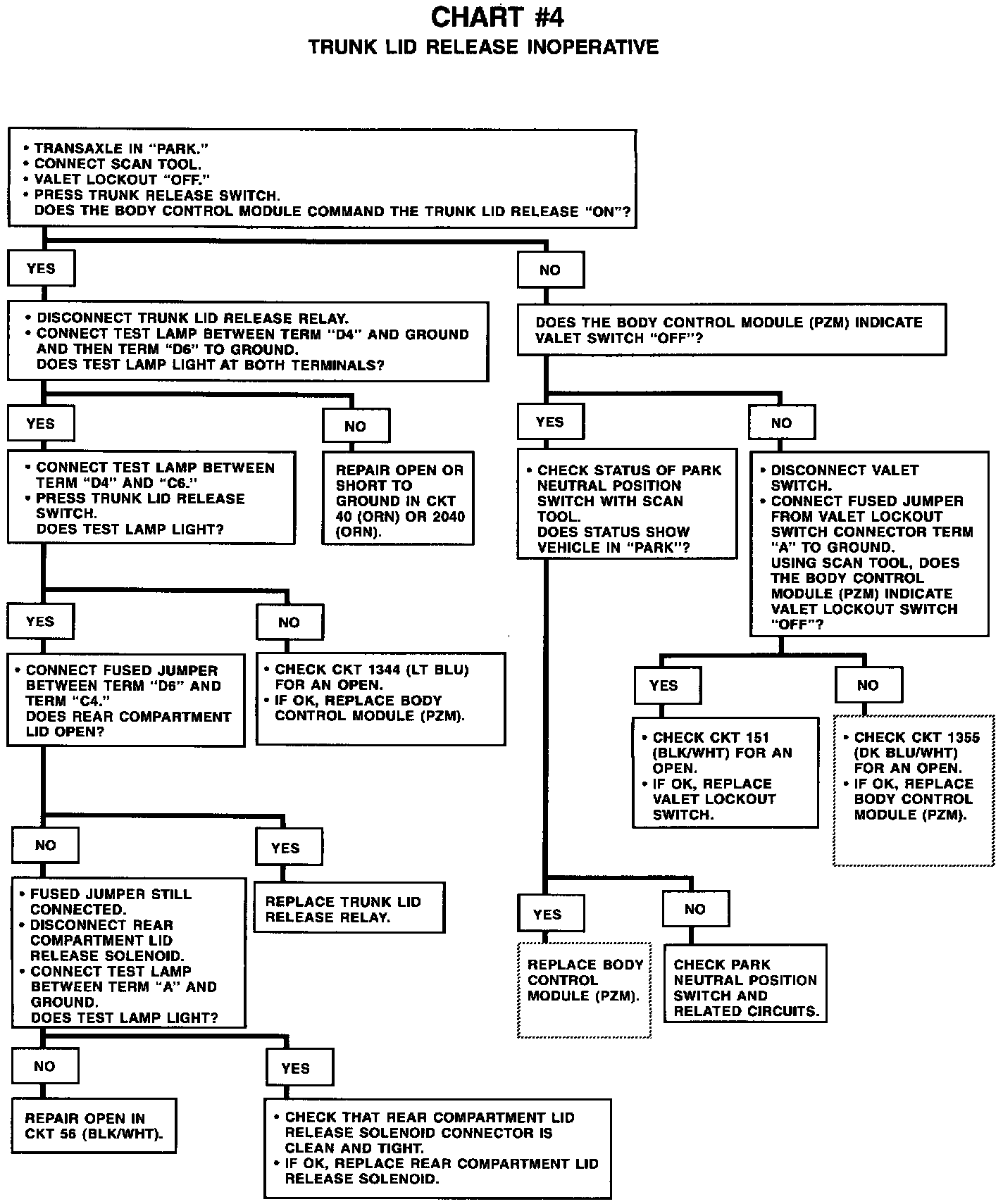

Chart #4 Trunk Lid Release Is Inoperative:
