FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
1998
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Chart 1
Chart 1

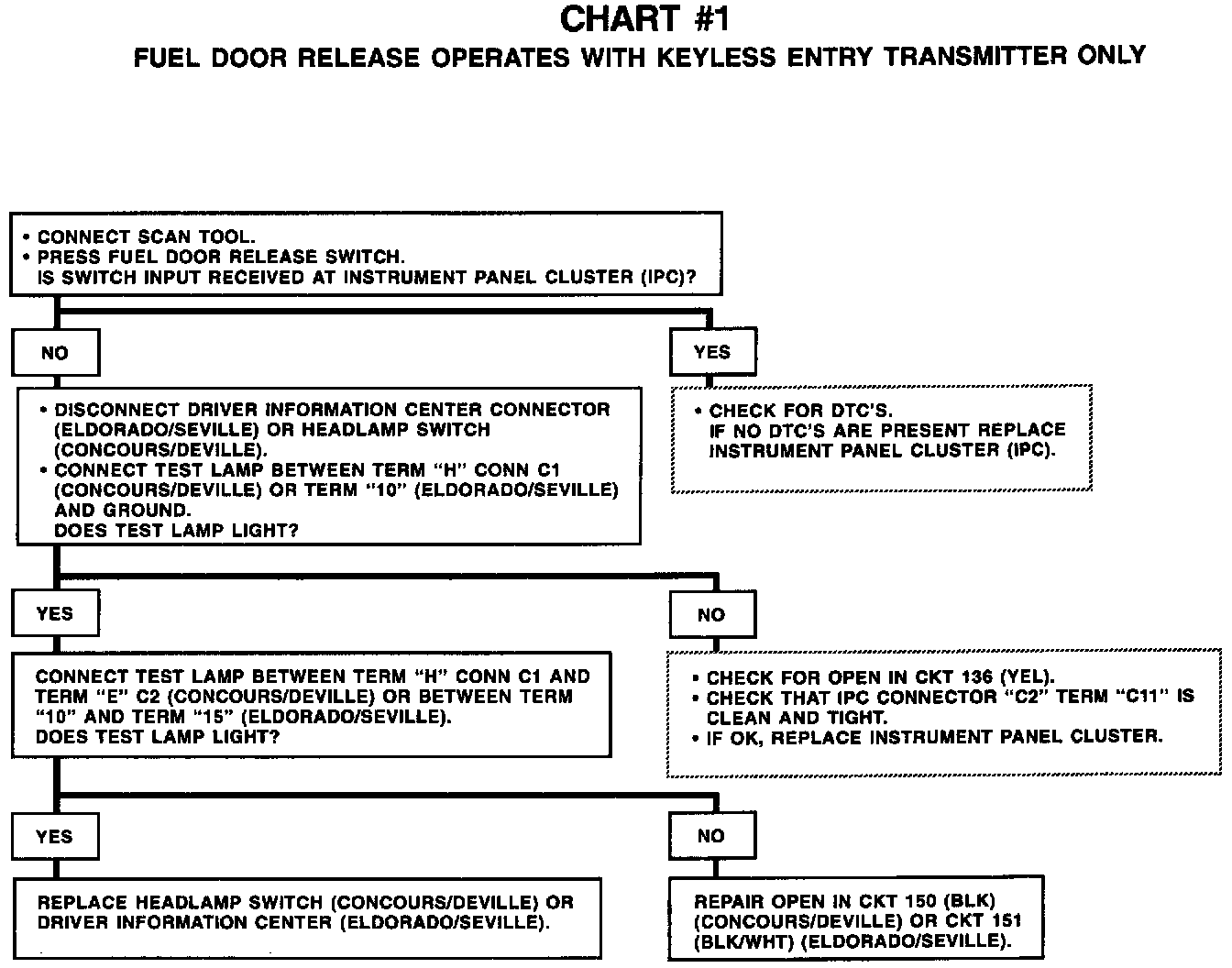

Chart #1 Fuel Door Release Operates With Keyless Entry Transmitter Only:

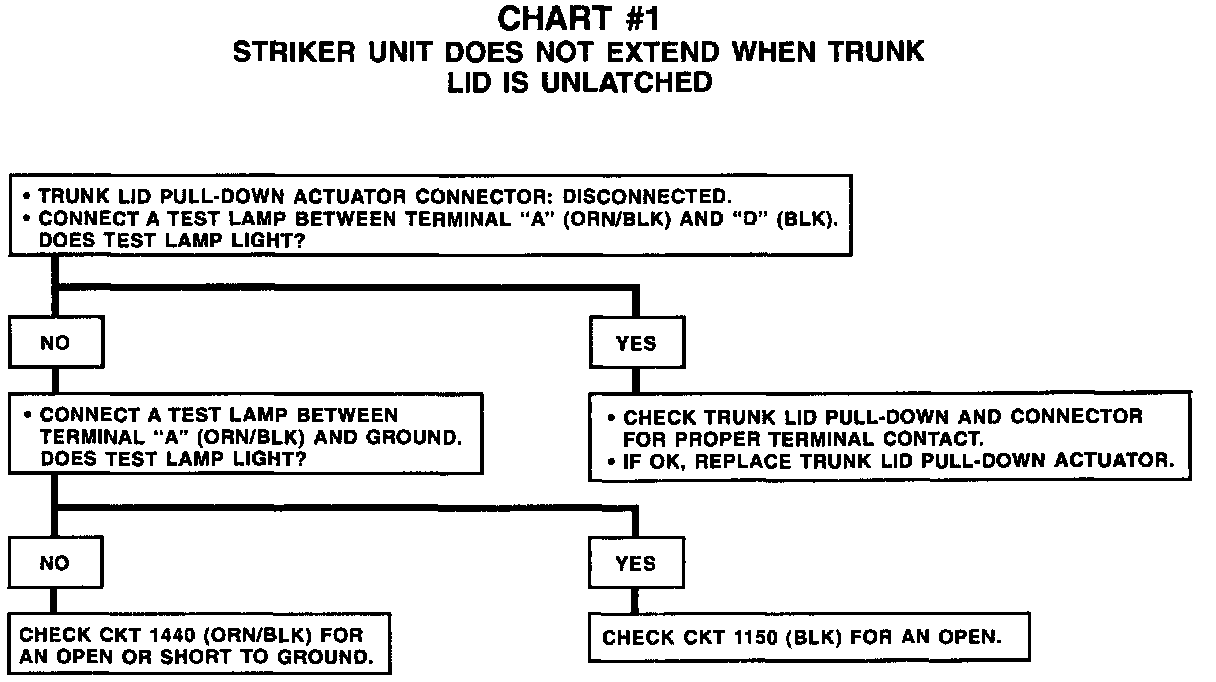

Chart #1 Striker Unit Does Not Extend When Trunk Lid Is Unlatched:
