Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Diagrams >> Electrical Diagrams >> Trunk Lid Release

Trunk Lid Release

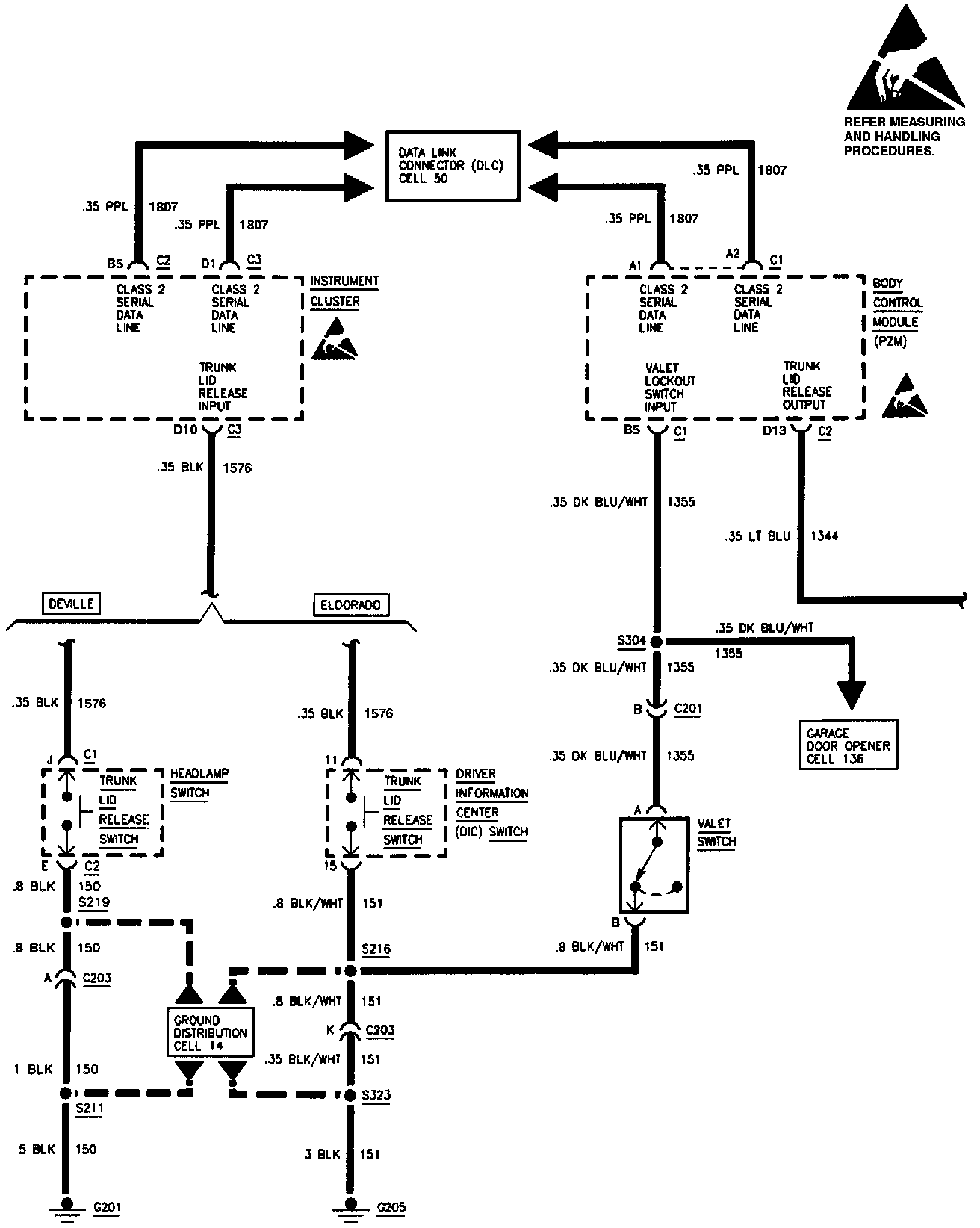

Release Systems: Trunk Release (Part 1 Of 2):



Release Systems: Trunk Release (Part 2 Of 2):
