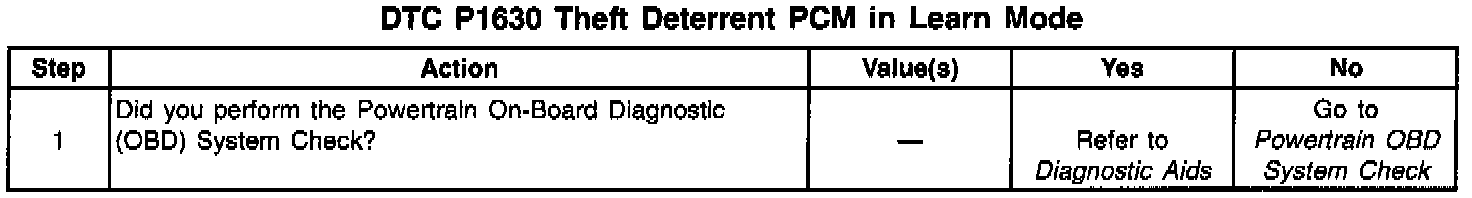

P1630

CIRCUIT DESCRIPTION
This diagnostic test checks for the Enable Password Learning Flag indicating the PCM is in learn password mode. This mode allows the PCM to learn the password from the Vehicle Theft Deterrent controller (Instrument Panel Cluster [IPC]) at assembly or when being serviced. The password needs to be learned whenever the PCM or the IPC is replaced.

CONDITIONS FOR RUNNING THE DTC
Vehicle Anti Theft System (VATS) is enabled.

CONDITIONS FOR SETTING THE DTC
When the Enable Learning Flag is set.

ACTION TAKEN WHEN THE DTC SETS
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ No message will be displayed.

CONDITIONS FOR CLEARING THE DTC
^ A History DTC will clear after forty consecutive warm-up cycles with no failures of any non-emission related diagnostic test.
^ A Last Test Failed (current) DTC will clear when the diagnostic runs and does not fail.
^ PCM battery voltage is interrupted.
^ Using a Scan tool.

DIAGNOSTIC AIDS
The PCM in learn mode is a DTC for the vehicle at the assembly plant, dealership and outside garage personnel as an indication that the learn mode is enabled. This means the PCM is now ready to learn a new password.
