Reveal Molding Retainer Replacement (Front)

REMOVAL PROCEDURE

Reveal Molding Retainer Replacement (Front): Removal Procedure:

CAUTION: When working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.

1. Remove windshield reveal molding.

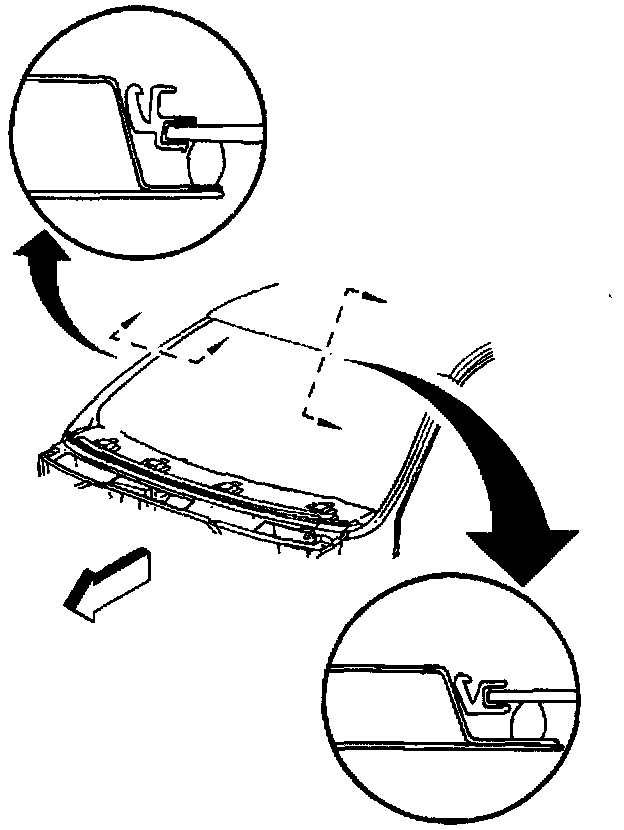

2. Use a plastic tool to assist in pushing away from the window while working it out the pinchweld to remove the reveal molding retainers from the following sides of the windshield:
^ From the upper side of the windshield.
^ From the lower side of the windshield. From the left side of the windshield.
^ From the right side of the windshield.
^ Refer to Windshield Removal Procedure if the reveal molding retainers become damaged.

INSTALLATION PROCEDURE

Reveal Molding Retainer Replacement (Front): Installation Procedure:

1. Install the reveal molding retainers to the following sides of the windshield:
^ To the upper side of the windshield.
^ To the lower side of the windshield.
^ To the left side of the windshield.
^ To the right side of the windshield.

IMPORTANT: Remove the windshield if the windshield reveal molding retainers cannot be properly installed due to the windshield fit or due to urethane interference.

2. Install windshield reveal molding.
