Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Windows >> LH Rear Side Door

LH Rear Side Door

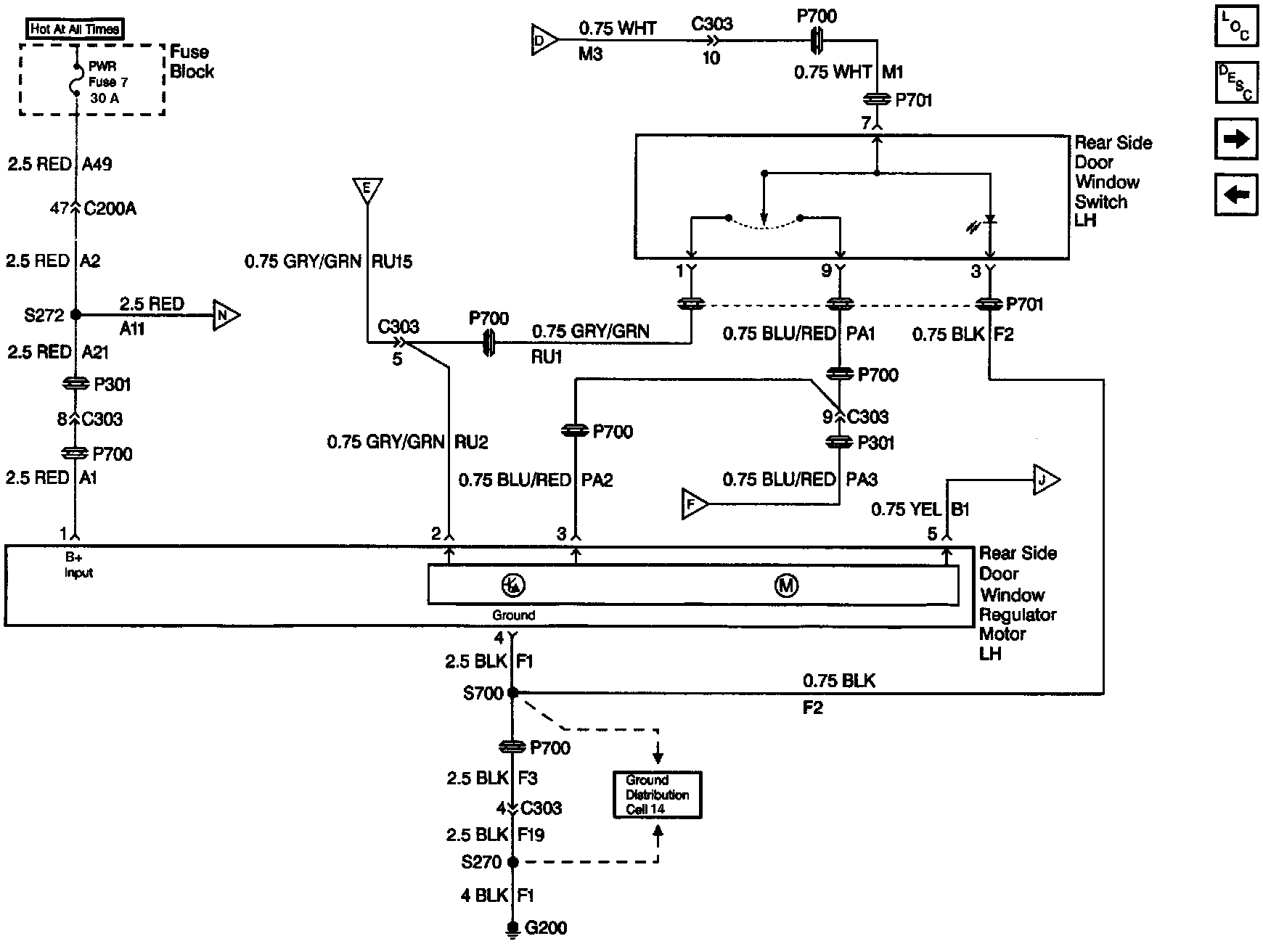

Power Window Schematics: LH Rear Side Door Window Switch And Window Regulator Motor:
