Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Diagrams

Heated Glass Element Relay: Diagrams

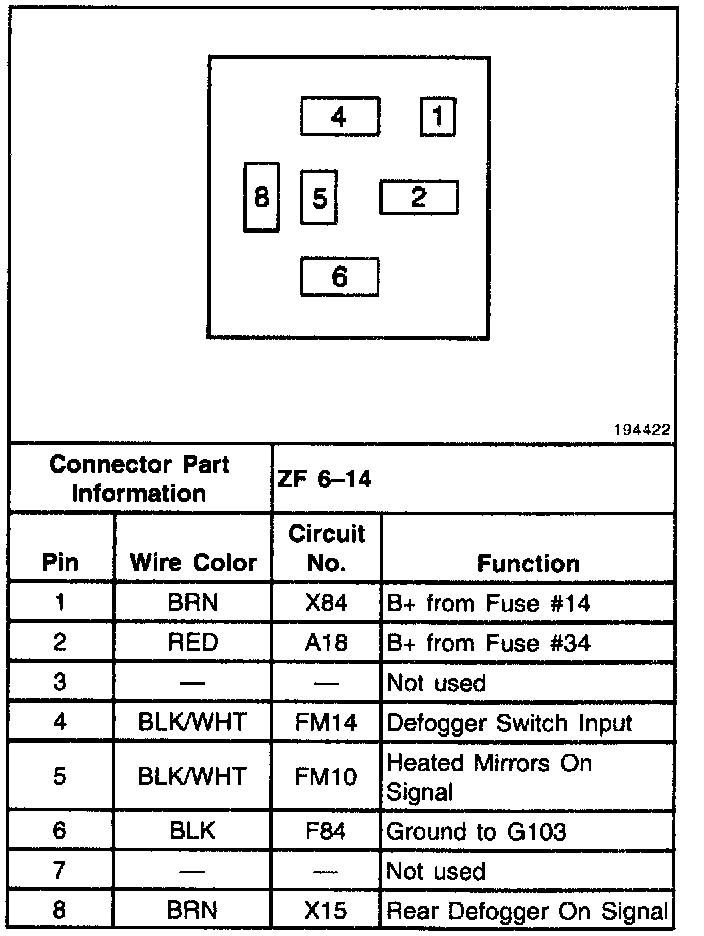

Heated Outside Rear View Mirror And Rear Window Defogger Relay K35:
