Functional Test

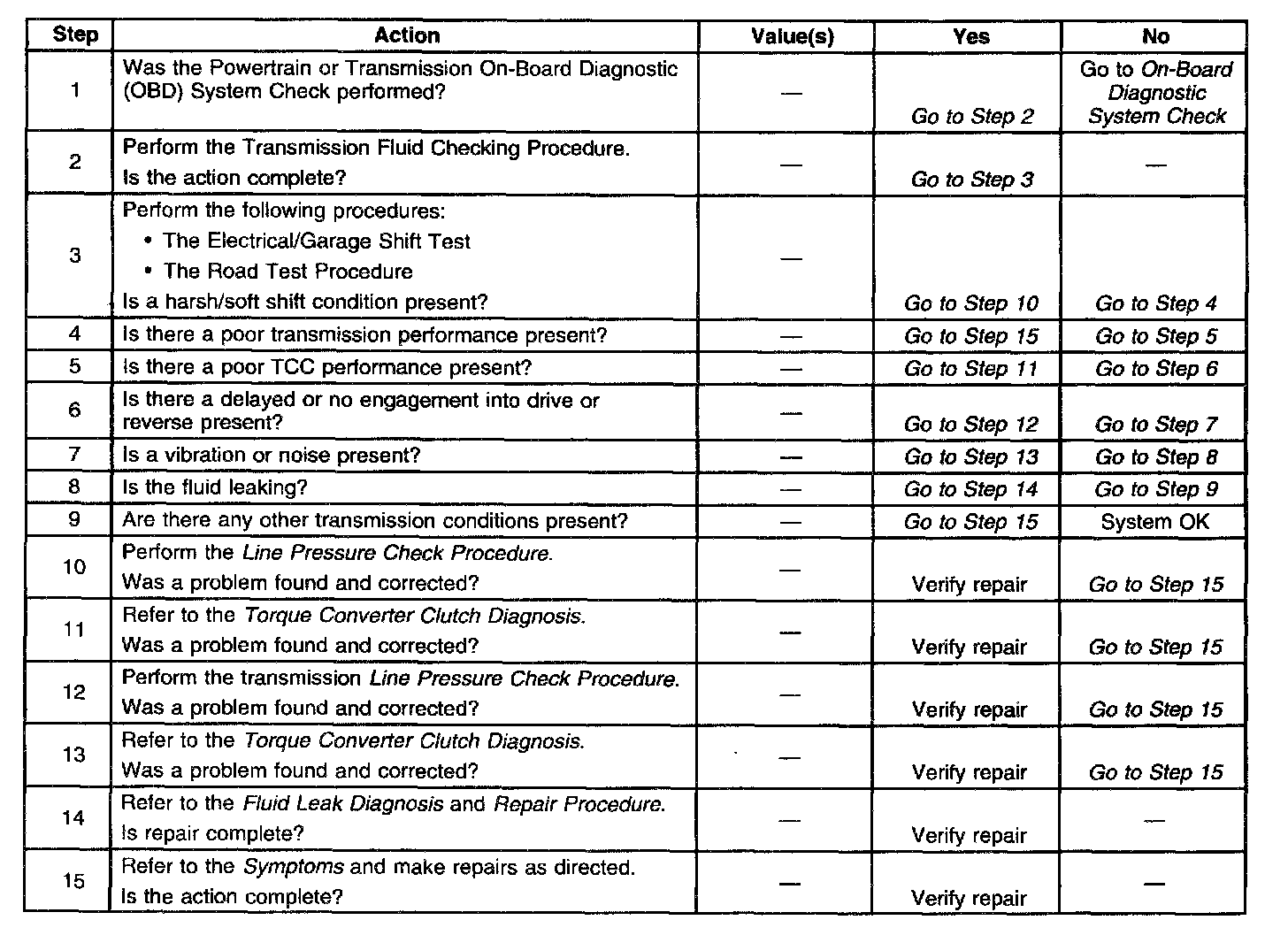

The Transmission Functional test should be the starting point of any mechanical/hydraulic transmission diagnosis. This table assumes that there are no DTCs set. Problems with the electronic transmission control system should be corrected before performing any of the diagnostic procedures in the Mechanical/Hydraulic Systems.
