Torque Converter Assembly Installation

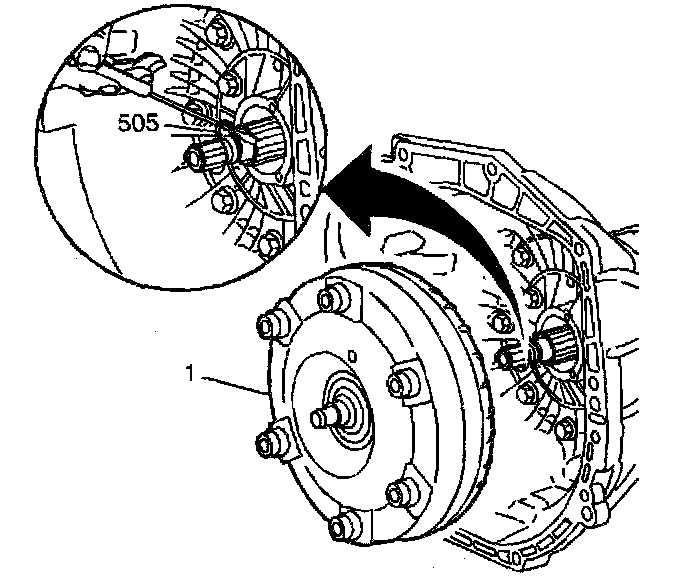

1. Install the turbine shaft 0-ring seal (505).
2. Install the torque converter (1) onto the transmission. Rotate the torque converter to completely engage the torque converter with the transmission oil pump and the TCC hub.
