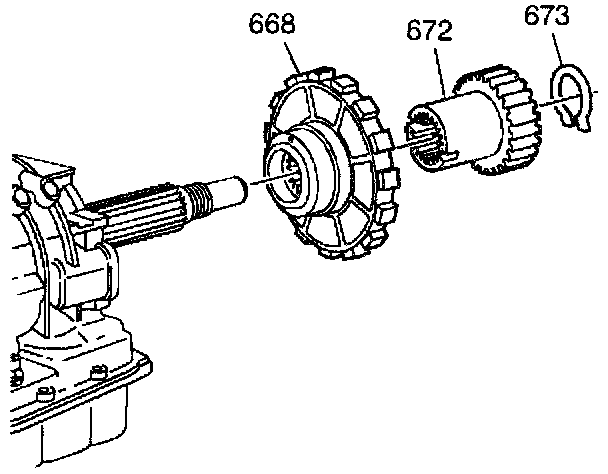

Speedometer Wheel and Park Lock Wheel Removal
Speedometer Wheel and Park Lock Wheel Removal
1.
Remove the speedometer wheel retaining ring (673).
2.
Remove the speedometer wheel (672).
3.
Remove the parking lock wheel (668).
