Selective Thrust Washer Installation
Selective Thrust Washer Installation
^
Tools Required
-
J 36850 Transjel(r)

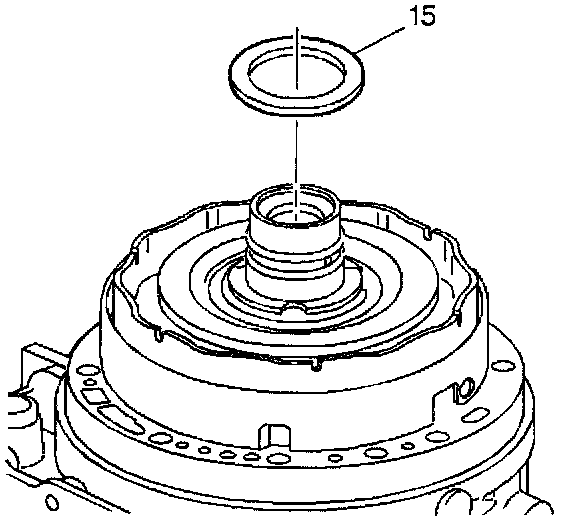

Install the proper selective thrust washer (15) onto the
center support
. Retain with J 36850 or equivalent.
