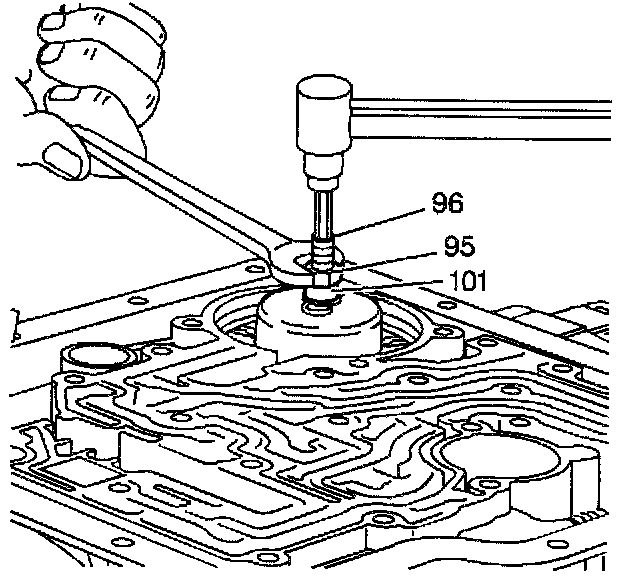

Forward Band Servo Piston Adjustment

1. Hold the servo piston adjusting sleeve (101) with a wrench.
2. Loosen the adjusting sleeve lock nut (95). Be certain the lock nut remains loose.
^ Tighten the adjusting screw (96) to 4.5 Nm (40 inch lbs.).

3. Loosen the adjusting screw (96) five turns, exactly.
4. Hold the adjusting sleeve and the adjusting screw while tightening the lock nut.
^ Tighten the lock nut (95) to 18.5 Nm (14 ft. lbs.).
