Extension Housing Disassemble
1.

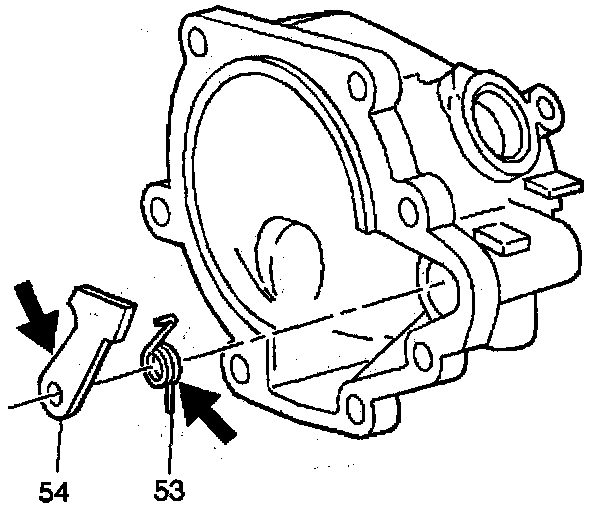

Remove the parking lock pawl (54).
2.
Remove the parking lock pawl spring (53).
3.
Inspect the parking lock pawl and pawl spring for damage.
