Detent Lever and Manual Shaft Installation

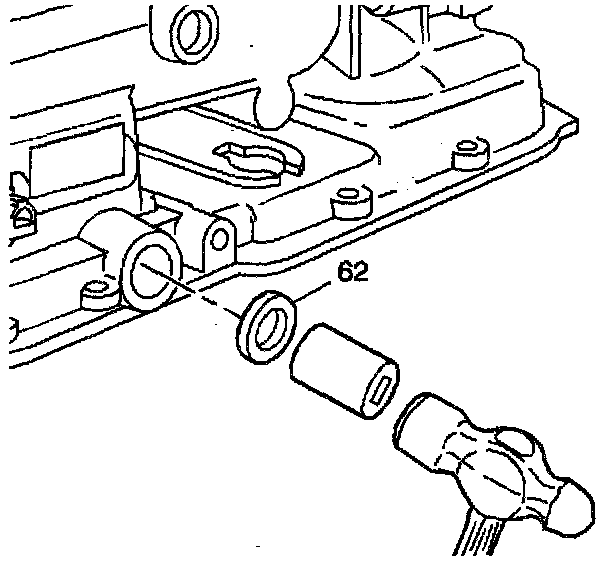

1. Install a new manual shaft seal (62).

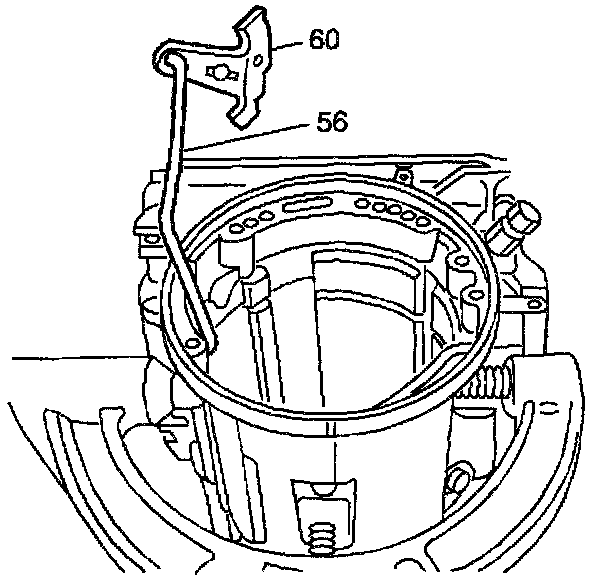

2. Install the detent lever (60) and parking pawl actuator assembly (56).

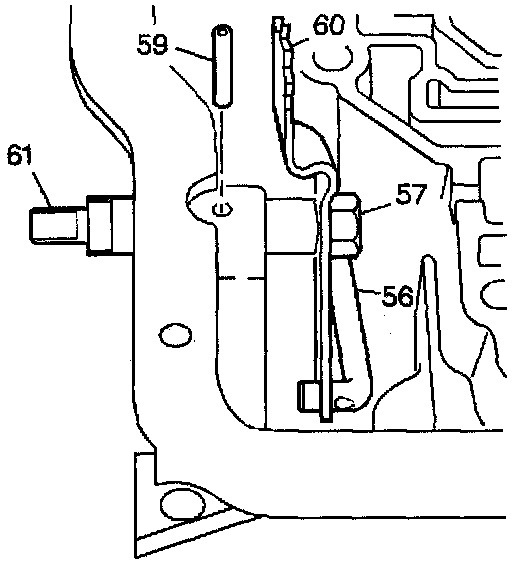

3. Install the manual shaft (61).
4. Install the manual shaft nut (57).
^ Tighten the nut to 22 Nm (16 ft. lbs.).

5. Install the manual shaft spring pin (59).
6. Check the manual shaft for free movement.
