Converter Housing Assembly Installation

^ Tools Required
- J 3387-2 Converter Housing Guide Pins
- J 23082-01 Pump Rotation Tool J 36850 Transjel(r)

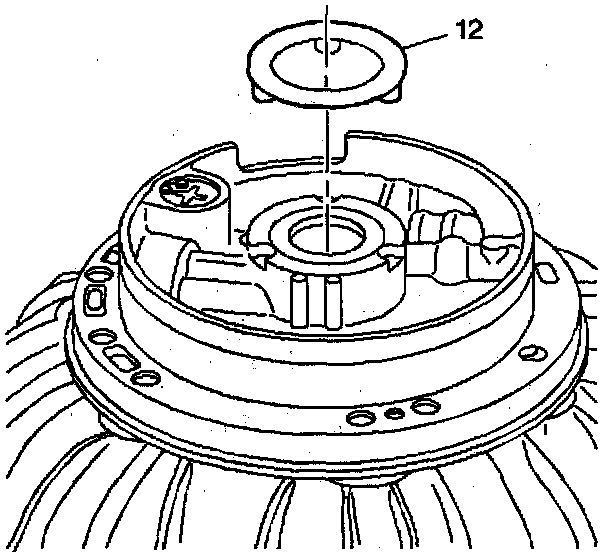

1. Install the adapter case thrust washer (12) as determined by the selective thrust washer check to the oil pump. Retain with J 36850 or equivalent.





2. Install J 3387-2.

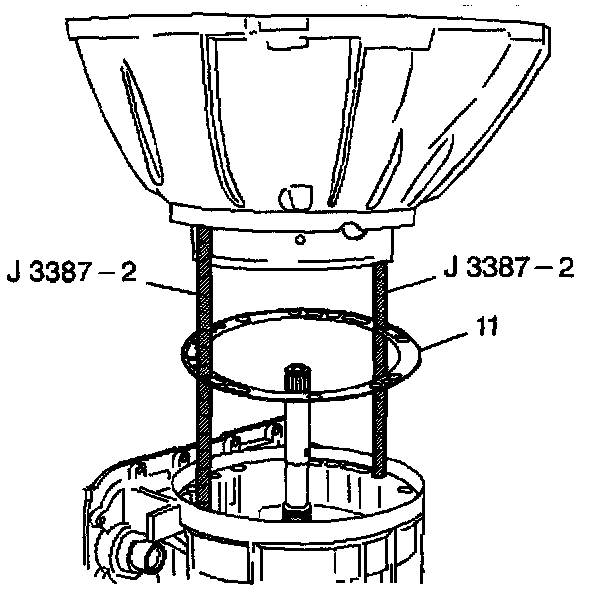

3. Install the oil pump to case gasket (11) onto the pump. Retain with J 36850 or equivalent.
4. Install the converter housing and the oil pump assembly.
5. Remove J 3387-2.
6. Install the converter housing to case bolts (4).
^ Tighten the bolts to 40 Nm (29 ft. lbs.).





7. Rotate the oil pump drive gear using J 23082-01 to check for free movement.
