Brake Band Removal

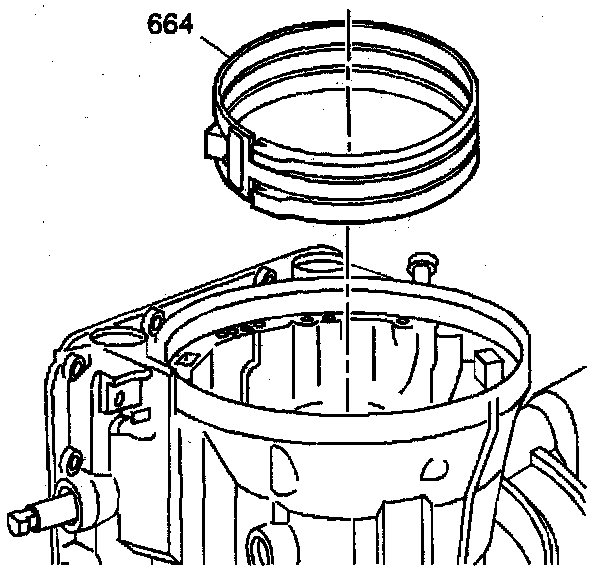

1. Remove the brake band (664).
2. Inspect the brake band for:
^ Cracks
^ Flaking
^ Heat damage
