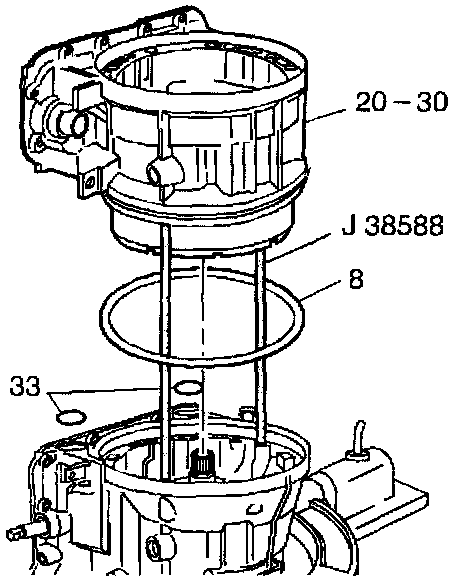

Adapter Case Assembly Installation

^ Tools Required
- J 38588 Guide Pins

1. Install the two adapter case to main case seals (33).
2. Install the adapter case to main case seal (8) to the adapter case.
3. Install J 38588 at the 4 o'clock and 11 o'clock positions.
4. Install the adapter case assembly (20-30).
5. Remove J 38588.
