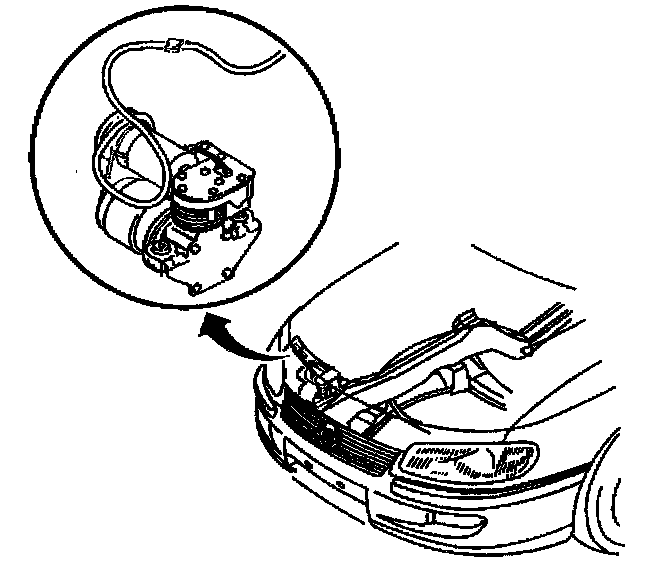

Air Compressor Replacement

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

CAUTION: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.

2. Raise and support the vehicle.
3. Disconnect the compressor electrical connector.
4. Perform the following steps to remove the air discharge tube from the air dryer:
a. Release the clip.
b. Pull the tubing connection from the air dryer.
5. Remove the air intake filter tubing from the vehicle body.
6. Counterhold the compressor mounting nuts on the opposite side of the compressor bracket to remove the compressor mounting bolts from the compressor bracket.
7. Remove the compressor mounting nuts.
8. Remove the compressor.

INSTALLATION PROCEDURE
1. Install the compressor.
2. Counterhold the compressor mounting nuts on the opposite side of the compressor bracket to install the compressor mounting bolts to the compressor bracket.

NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

^ Tighten the compressor mounting bolts to 15 Nm (11 ft. lbs.).
3. Route the air intake filter tubing to the vehicle body.
4. Clip the air intake filter tubing to the vehicle body.
5. Use petroleum jelly to lightly lubricate the seal.
6. Connect the air discharge tube to the air dryer.
7. Ensure the tube if fully seated to the air dryer fitting.
8. Use the clip to secure the tube to the air dryer fitting.
9. Ensure the clip is fully seated into the groove on the air dryer fitting.
10. Install the compressor electrical connector.
11. Lower the vehicle.
12. Reconnect the negative battery cable.
13. Reprogram the applicable accessories.
